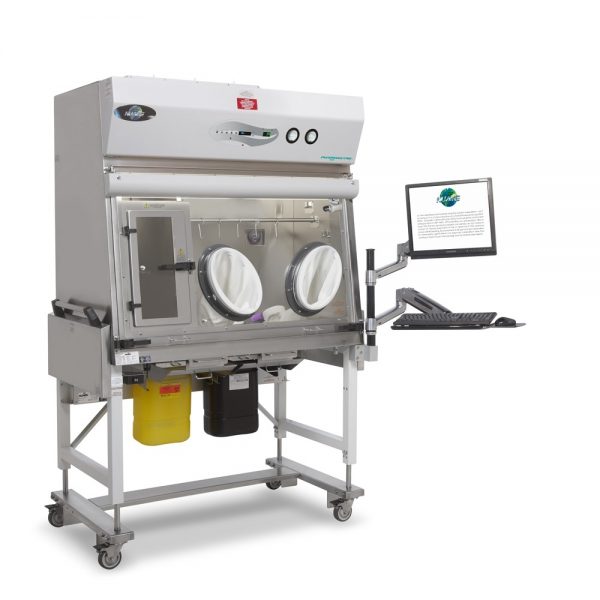

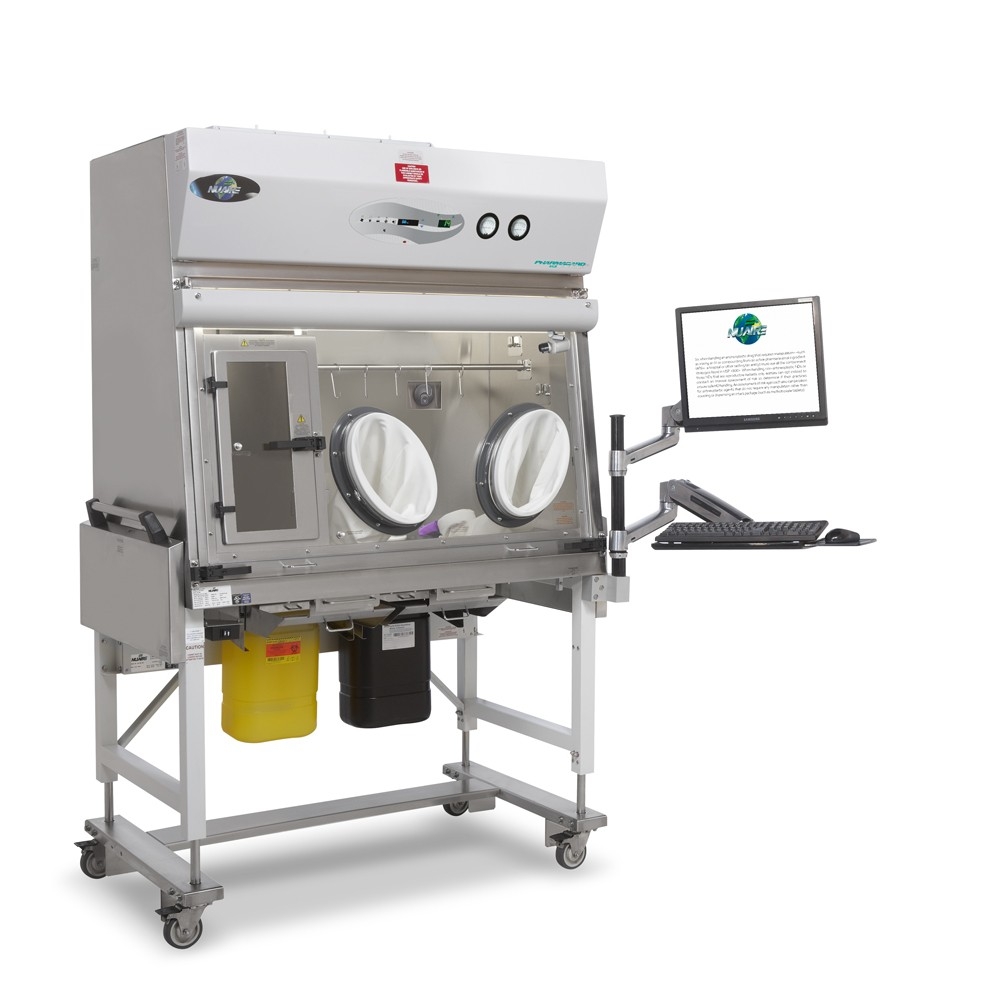

NuAire PharmaGard ES NU-NR800 Recirculating Compounding Aseptic Containment Isolator

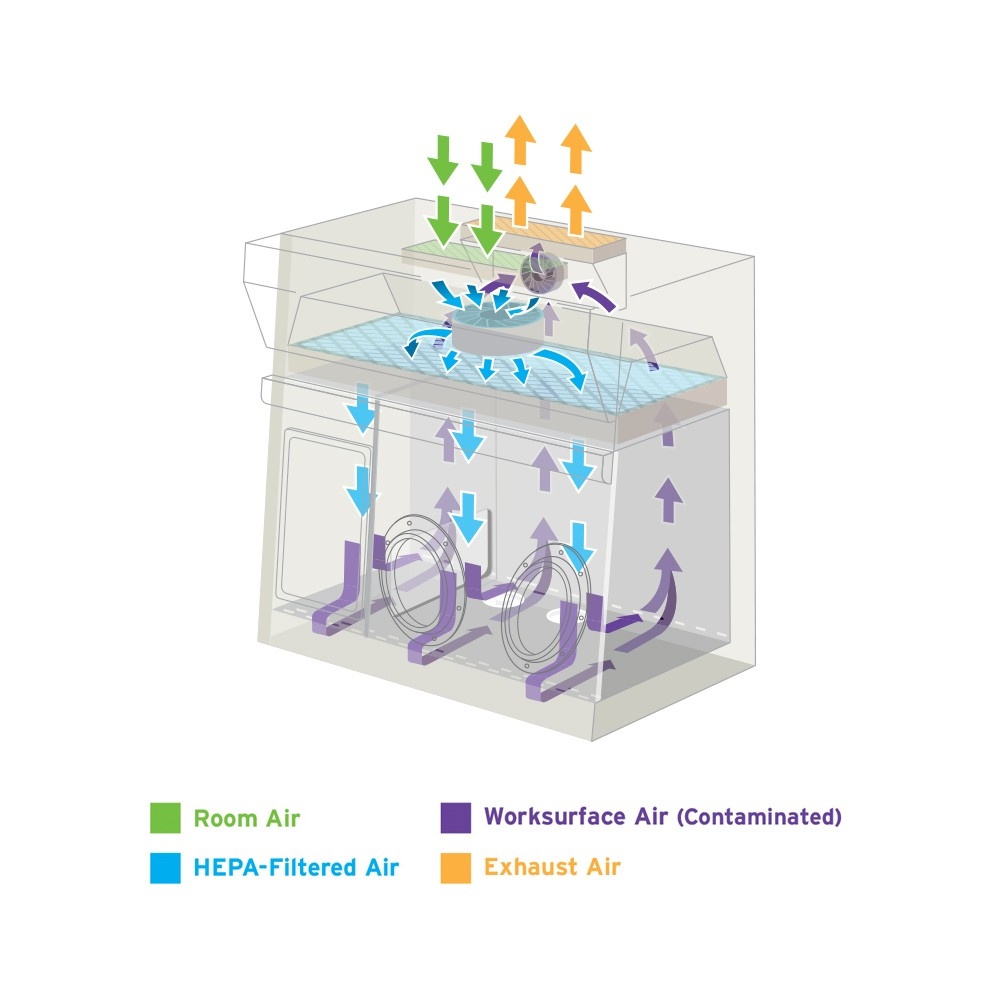

Item#: NU-NR800The PharmaGard ES NU-NR800 Compounding Aseptic Pharmacy Isolator from NuAire uses a Restricted Access Barrier Systems (RABS) which creates a negative pressure ISO Class 5 controlled environment for the aseptic compounding of hazardous drugs and complies with USP <800> requirements. These isolators provide multiple levels of protection in order to eliminate contamination and minimize the possibility of chemotherapy agents or other hazardous materials from entering or exiting the work area.
- Air Changes: 20 Air Changes per Minute
- Air Cleanliness (ISO 14644): ISO-Class-5
- Chamber Pressurization: Negative
- Construction: Welded stainless steel 16GA, Type 304 pressure tight design
- Control System: FlowGard
- Cord Pass Through: Optional
- Diffuser: Metal, Non-flammable
- Downflow fpm (m/s): 45-55 FPM (0.23 - 0.28 m/s)
- Electrical Configuration: 115V60Hz
- Exhaust Filter: 3-inch (76mm) 99.995% Efficiency @ 0.3 Microns
- HEPA Filter Seal Type: Neoprene, Spring loaded Under Negative Pressure
- Interchange Chamber: ISO Class 5 With Internal/External Sealed Doors

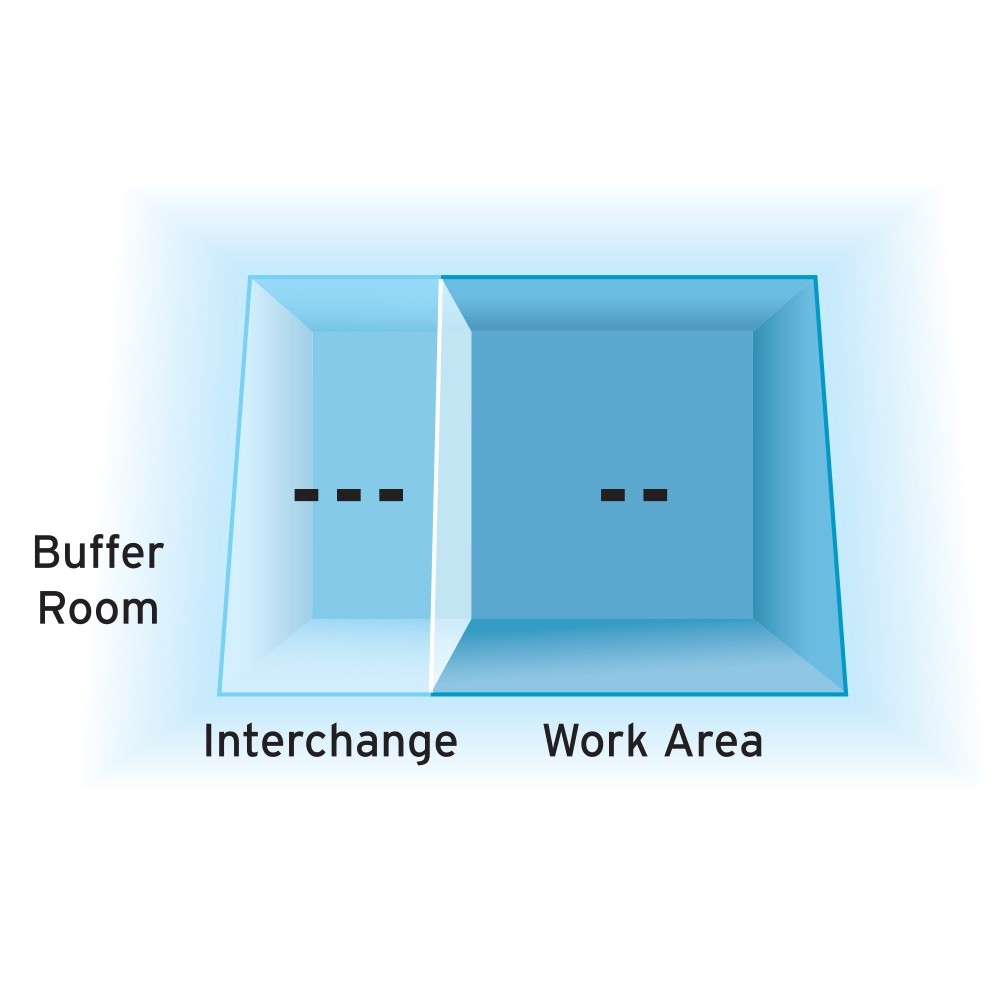

- Interchange Pressure: Maximum -0.15" w.g. (0.05" More Negative than Work Area)

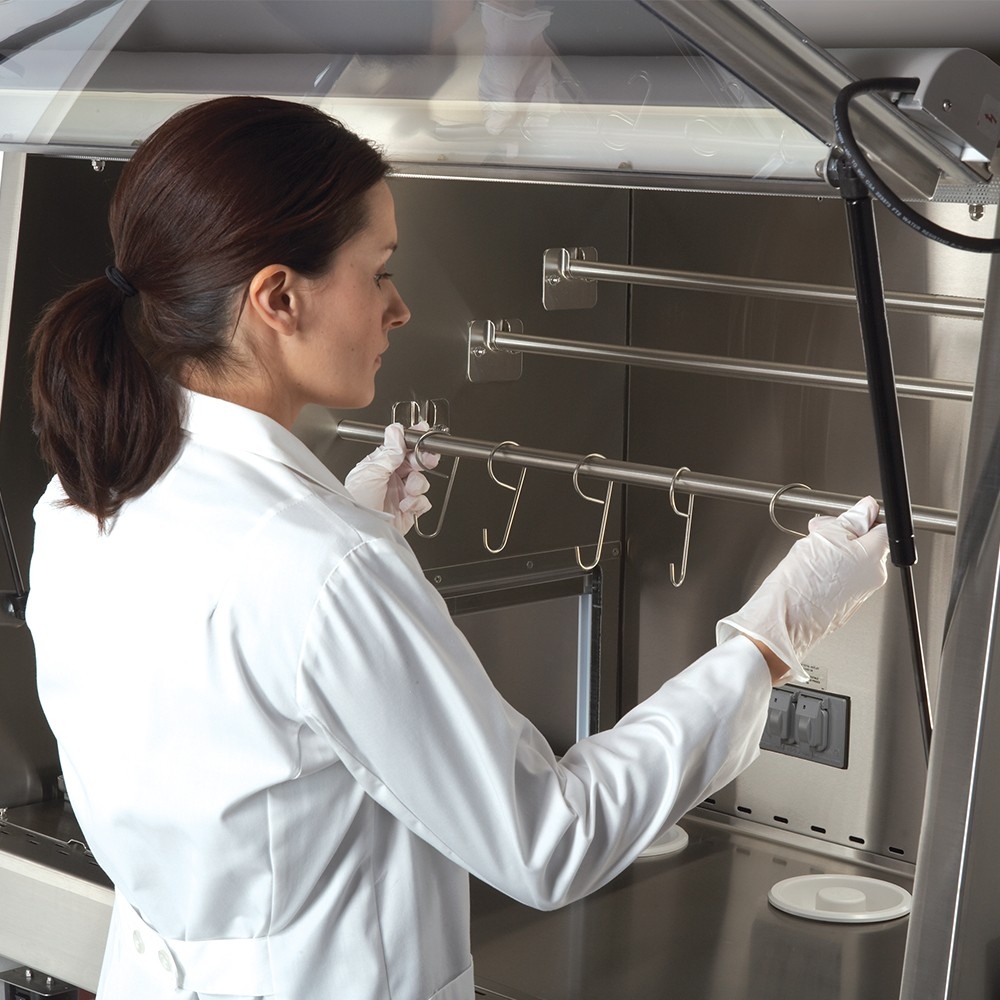

- IV Bar with 6 Hooks: One Bar Included, Additional Bar Optional
- Lighting: Fluorescent
- Light Intensity fc (Lux): 40 - 80 (430 - 860)
- Outlet(s): One on Back Wall of Work Area
- Performance Standard: CETA-CAG-002-2006
- PharmaGard Pressure Monitor: Standard
- Power Cord Length Foot (Meter): 12 (3.7)
- Protection: Product, Personnel, Environmental
- Safety Certification: UL, UL-C
- Seismic Brackets or Studs: Optional Side, Rear or Floor Mount Seismic Brackets
- Service Valves (3/8-inch NPT): N/A
- Style: Bench top/console Isolator
- Supply Filter: 1 11/16-inch (43mm) 99.995% Efficiency @ 0.3 Microns
- Supply Prefilter: Top of Unit
- Viewing Window Inches (mm): Hinged
- Waste/Sharps Disposal System: Optional
- Work Area Pressure: -0.15" w.g. +/-0.05" w.g.
ELECTRICAL
| NU-NR800-400 | NU-NR800-600 | |
|---|---|---|
| Blower/Lights Amps | 3 | 5 |
| Outlet Amps | 3 | 3 |
| Power Cord | 14 GA - 3 Wire, 15A | 14 GA - 3 Wire, 15A |
| Rated Amps | 6 | 8 |
EXHAUST
| NU-NR800-400 | NU-NR800-600 | |
|---|---|---|
| Exhaust Requirement CFM (CMH) | 200 (340) | 225 (382) |
| Exhaust Requirement for Fixed Canopy (NU-916-797) CFM (CMH) | 200 (340) | 225 (382) |
| Plant Duct Static Pressure Inches (mm) | 0.05 - 0.1 (1.24 - 2.54) | 0.05 - 0.1 (1.27 - 2.54) |
DIMENSIONS
| NU-NR800-400 | NU-NR800-600 | |
|---|---|---|
| Exterior Depth Inches (mm) | 32.5 (826) | 32.5 (826) |
| Exterior Height Inches (mm) | 51.75 (1314) | 51.75 (1314) |
| Exterior Height (Minimum with optional base stand) Inches (mm) | 81.75 (1314) | 81.75 (2076) |
| Exterior Width Inches (mm) | 50 (1270) | 74 (1880) |
| Interchange Interior Depth Inches (mm) | 24 (610) | 24 (610) |
| Interchange Interior Height Inches (mm) | 27.375 (695) | 27.375 (695) |
| Interchange Interior Width Inches (mm) | 14.125 (359) | 14.125 (359) |
| Interchange Work Tray Depth Inches (mm) | 17 3/4 (451) | 17 3/4 (451) |
| Interchange Work Tray Width Inches (mm) | 12 1/2 (318) | 12 1/2 (318) |
| Work Area Depth Inches (mm) | 23.25 (591) | 23.25 (591) |
| Work Area Height Inches (mm) | 27.375 (695) | 27.375 (695) |
| Work Area Width Inches (mm) | 35.25 (895) | 59.25 (1505) |
CONSTRUCTION
| NU-NR800-400 | NU-NR800-600 | |
|---|---|---|
| Glove Ports | Two | Three |
| Motor(s) | 1 Supply Impeller, 1 Exhaust Impeller | 2 Supply Impellers, 1 Exhaust Impeller |
PERFORMANCE
| NU-NR800-400 | NU-NR800-600 | |
|---|---|---|
| Heat Rejected (BTU/Hour) | 795 | 1136 |
WEIGHT
| NU-NR800-400 | NU-NR800-600 | |
|---|---|---|
| Net Weight lbs (kg) | 440 (200) | 590 (268) |
| Shipping Weight lbs (kg) | 490 (222) | 640 (290) |
- 1 Supply EC Impeller on 4 ft (1,2m) Model
- 2 Supply EC Impellers on 6 ft (1,8m) Model
- 1 Exhaust Impeller
- Stainless Steel Work Zone
- One Outlet on Back Wall
- Intake Prefilter
- Supply HEPA Filter
- Exhaust HEPA Filter
- ISO Class 5 Work Zone
- 20 Air Changes per Minute
- Hinged, Polycarbonate Front Window
- Sliding Transfer Door

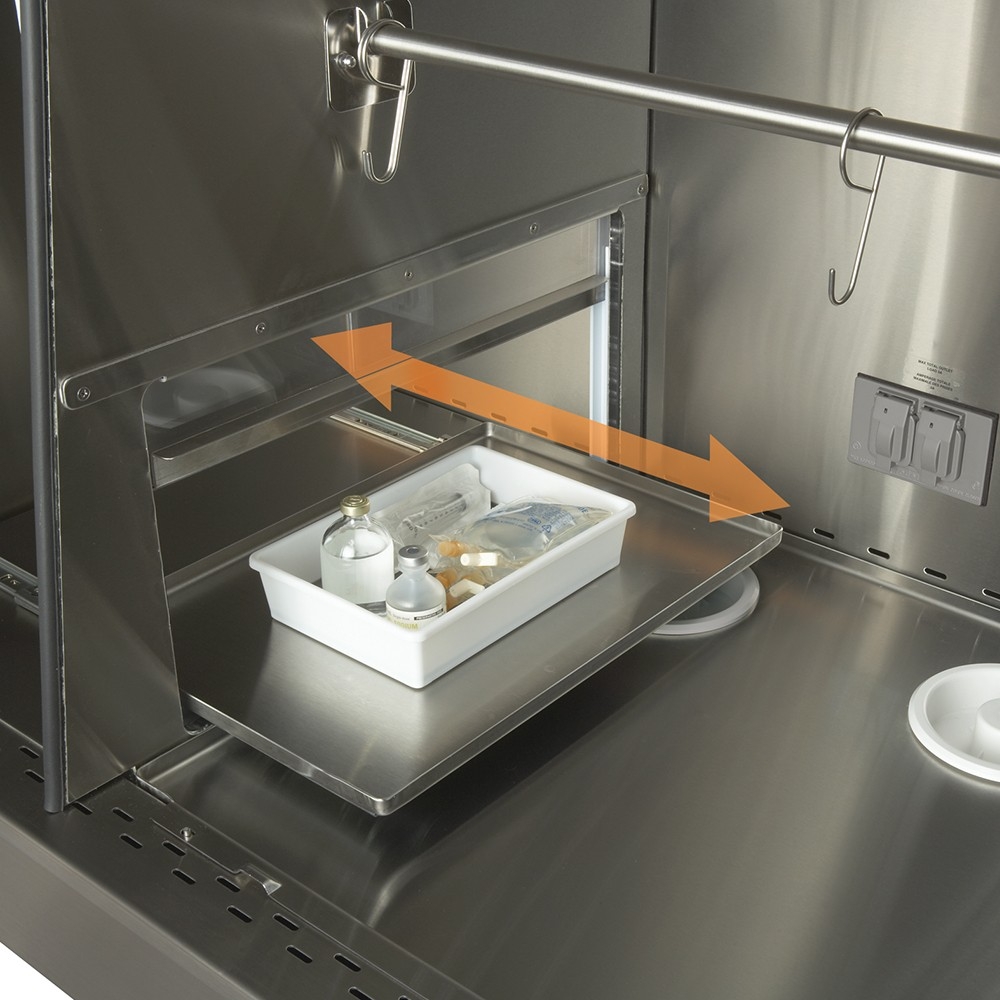

- Sliding Chamber Transfer Tray
- Two Glove Ports on 4 ft (1,2m) model
- Three Glove Ports on 6 ft (1,8m) model
- Fluorescent Lighting
