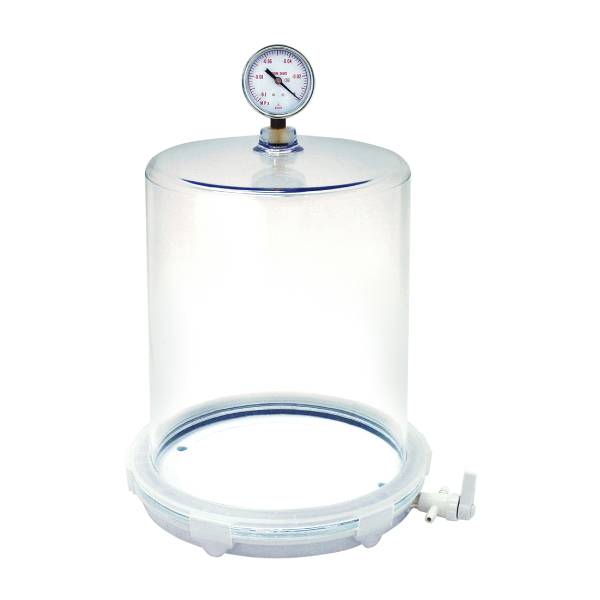

Jeio Tech VDP-25G Vacuum Desiccator with Gauge | 16L (0.6 cu ft)
Item#: AAAD3111The Jeio Tech VDP-25G Vacuum Desiccator with Gauge is a 16L vacuum storage chamber designed for drying, protecting, and storing moisture-sensitive samples under reduced-pressure conditions. Its solid integral polycarbonate construction helps minimize leakage and maintain vacuum levels down to 1 Torr for up to 72 hours, while also providing a clear view of contents during use. Equipped with a built-in gauge, standard 3-way stopcock valve, and a dedicated PP desiccant tray, the VDP-25G offers reliable vacuum desiccation for routine laboratory applications.
$518.00 $477.00
- Internal volume (L / cu ft): 16/0.6

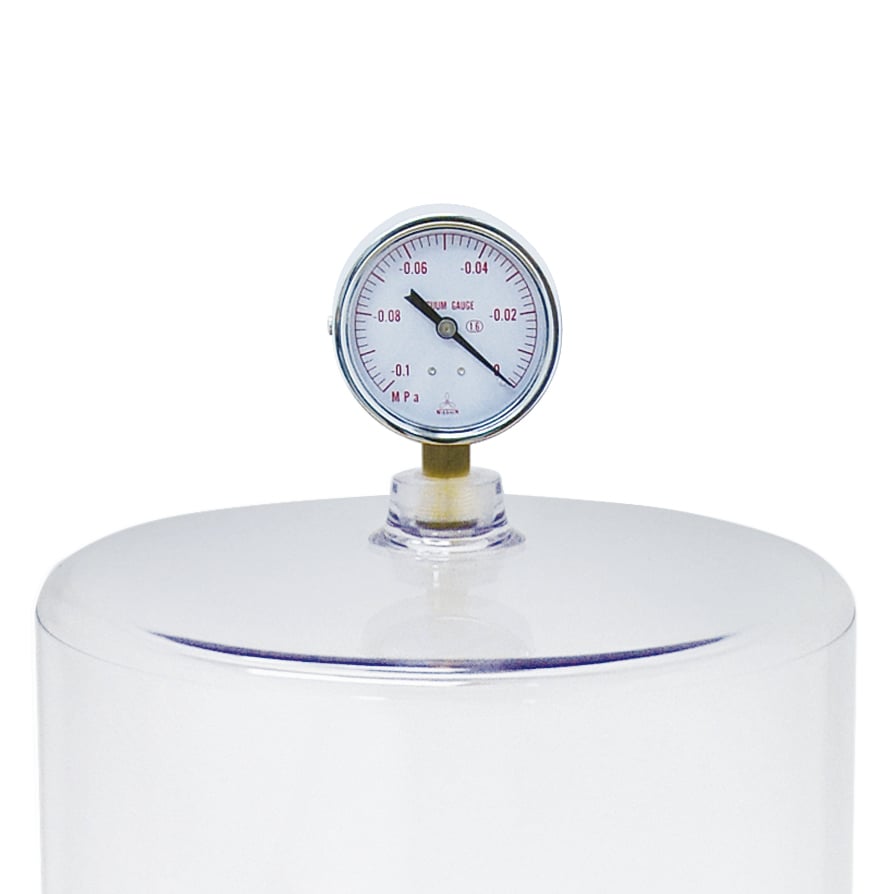

- Gauge range (Mpa): 0 to -0.1
- Max. permissible vacuum (Body) (Mpa): 1.33 x 10-4 (1 Torr)
- Dimensions:
- Internal (Ø x H, mm / inch): 244 x 318 / 9.6 x 12.5
- Overall (Ø x H, mm / inch): 308 x 374 (308 x 449) / 12.1 x 14.7 (12.1 x 17.7)
- Nozzle dia. (mm / inch): 9.5 / 0.37
- Net weight (kg / lbs): 2.7 (2.8) / 5.9 (6.2)
- Quantity of perforated shelves: 2 /5 (or 3)
- 1 Torr, maintained for 72 hours
Up to 1 Torr vacuum maintained for 72 hours.
Suitable for samples that need to be dehumidified in vacuum state. - Solid integral structure
Made of integral mold to minimize leakage and there is no warping even in repeated high vacuum conditions. - Transparent observation environment

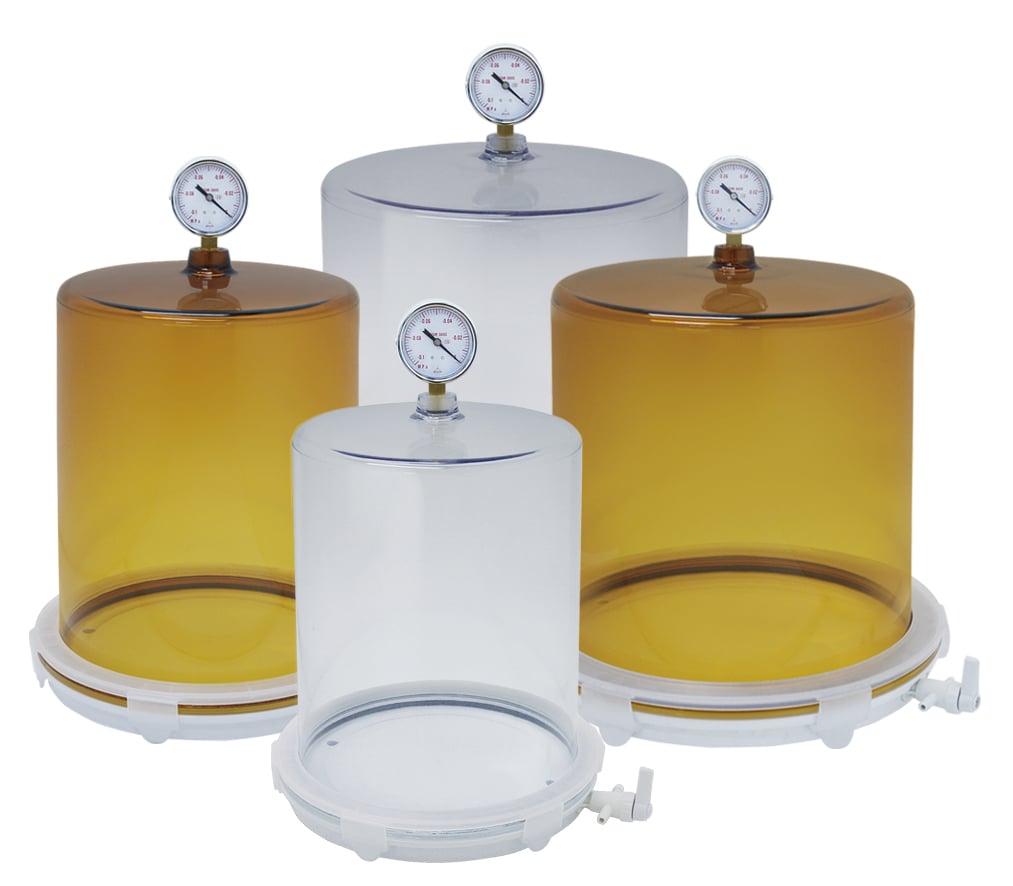

The material of the body is polycarbonate.(PC) - UV blocking model
UV blocking model provided for vacuum storage of light-sensitive samples. - Desiccant Tray
Includes a dedicated tray made of PP as standard that the user can conveniently place a desiccant in. - Standard 3-way stopcock valve
Jeio Tech Vacuum Desiccator Video Manual (EN)
