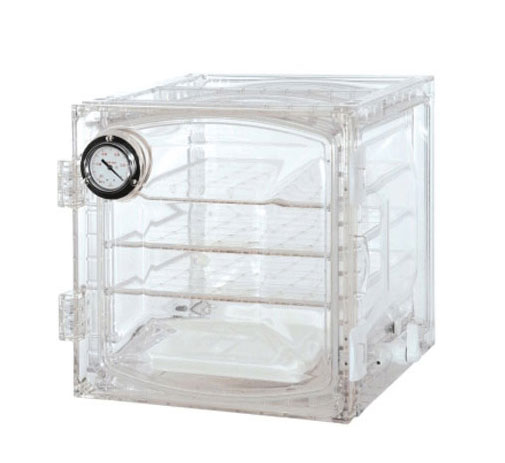

Jeio Tech VDC-21U Vacuum Desiccator with UV block effect | 23L (0.8 cu ft)
Item#: AAAD4121The Jeio Tech VDC-21U Vacuum Desiccator with UV block effect is a 23L laboratory chamber designed for reliable vacuum drying and storage of moisture- and light-sensitive samples. It maintains a stable vacuum of up to 1 Torr for more than 72 hours using a high-quality silicone gasket that ensures a clean, grease-free airtight seal within a durable, transparent, shatterproof polycarbonate body. Featuring UV-blocking protection, a front-mounted vacuum gauge, three-way stopcock, multiple tubing ports, and a stackable space-saving design, the VDC-21U delivers efficient and secure desiccation for laboratory workflows.
$1,627.00 $1,497.00
- Internal volume (L / cu ft): 23 / 0.8
- Gauge range (Mpa): 0 to -0.1
- Nozzle (mm / inch, Ø): 9.5 / 0.37
- Max. permissible vacuum (bodies): 1.33×10-4 Mpa
- Max. load (kg / lbs) per shelf: 5 / 11
- Number of shelves (standard / max.): 2 / 4
- Material:
- Body- Polycarbonate
- Perforated sample tray- Polycarbonate
- Drying agent tray / Locker-Polypropylene
- Vacuum seal- Silicone rubber
- Exterior Dimension (W×D×H): 420 x 397 x 281/16.5 x 15.6 x 11.1
- Interior Dimension (W×D×H): 346 x 365 x 246/13.6 x 14.4 x 9.7
- Net weight (kg / lbs): 8.2 / 18.1
- Maximum vacuum of 1 Torr (1.33×10-4 Mpa) for more than 72 hours.
- High quality silicone gasket ensures greaseless airtight seal for the clean and cost effective test environment.
- Highly transparent, shatterproof, non-corrosive, and easy to clean polycarbonate construction.
- Three-way stopcock provides great convenience for consistent and uniform vacuum draw, vacuum release, or gas exchange. The barbed fitting on each side secures attachment of tubing.
- Maximized utilization of internal space using maximum four to six shelves depending on product sizes.
- Stackable space-saving design allowing efficient usage of cramped lab space.
- Easy vacuum level checking with the standard vacuum gauge attached to the front door.
- Minimizing damages or discoloration of light-sensitive samples. (for U models)
- Four built-in ports allowing easy attachment of tubing.
- ※ RoHS except for VDC-U models.
Jeio Tech Vacuum Desiccator Video Manual (EN)
