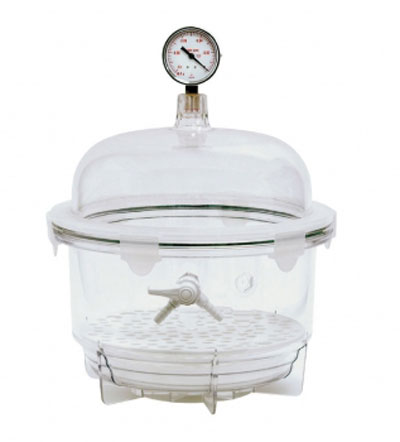

Lab Companion VDR-20UG Vacuum Desiccator with Gauge and UV block effect | 6L (0.2cu ft)

Item#: AAAD2041

Round design desiccator featuring light weight yet high tensile strength.

$389.00 $369.55

Request a Quote
  • Internal volume (L / cu ft): 6 / 0.2
  • Gauge range (Mpa): 0 to -0.1
  • Nozzle (mm / inch, Ø): 9.5 / 0.37
  • Max. permissible vacuum (bodies): 1.33×10-4 Mpa
  • Material:
    • Lid / Bottom- Polycarbonate
    • Perforated sample tray- Polypropylene
    • Drying agent tray- Polypropylene
    • Locker-Polypropylene
    • Vacuum seal- Silicone rubber
  • Dimension (I.D. × H)-
    • Overall (Ø x H, mm / inch): 252x279 (252x354) / 9.9x11 (9.9x13.9)
    • Internal (Ø x H, mm / inch): 183x173 / 7.2x6.8
    • Net weight (kg / lbs): 1.5 / 3.3
  • Maximum vacuum of 1 Torr (1.33×10-4 Mpa) for more than 72 hours
  • High quality silicone gasket ensures greaseless airtight seal for the clean and cost effective test environment.
  • Highly transparent, shatterproof, non-corrosive, and easy to clean polycarbonate construction.
  • Three-way stopcock provides great convenience for consistent and uniform vacuum draw, vacuum release, or gas exchange. The barbed fitting on each side secures attachment of tubing.
  • Flange lock holding the top and the bottom together during non-vacuum conditions.
  • Various models available with respect to sizes and UVblocking effect.
  • Minimizing damages or discoloration of light-sensitive samples (for U/UG models).
  • A vacuum gauge attachable at the center of the lid for easy vacuum level checking (for G/UG models).
  • The top and bottom of round vacuum desiccators and cylindrical vacuum desiccators are compatible with each other for diverse use.
  • ※ RoHS except for VDP-U models.
