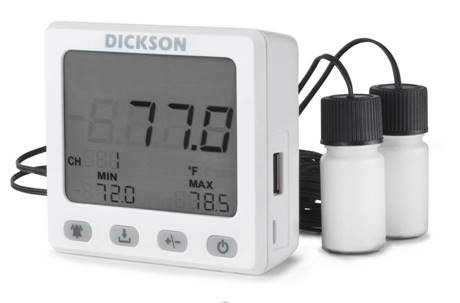

Data Logger Monitoring Kit for -20°C Vaccine Storage Temperatures (w/ Dual Temperature Thermistor with Buffer & Software)

Item#: LRC-20-MOD2

The Data Logger Monitoring Kit for -20°C Vaccine Storage Temperatures comes standard with dual temperature glycol thermistor with buffer, data monitoring software & 1PT NIST Calibration making it easy to comply with VFC requirements.

$519.00

Add to wishlist
REQUEST PROPOSAL
  • Alarm Type: Audio, Visual
  • Ambient Operating RH Conditions: 0-95% RH non-condensing
  • Ambient Operating Temperature Conditions:
    • 0 to 158.0f (0.0 to 70.0c)
    • Below 32F/0C and Above 130F/54C with A900 extension cable only
  • Thermistor Temperature Range: -58.0F to 158.0F (-50.0C to 70.0C)
  • Approvals: CE
  • Battery Life (Avg): 2 Years (At 5 minute Sample Interval and Display Refresh Interval and 72F. Shorter intervals will reduce battery life.)
  • Battery Type: 2 AA batteries
  • Channels: Up to 2 Channels
  • Data Capacity: ~400,000 readings
  • Dimensions: 87.0 x 76.0mm
  • Display Dimensions: 50 x 67mm
  • Display Resolution: 0.1 from 0.0 to 999.99; 1 over 1000

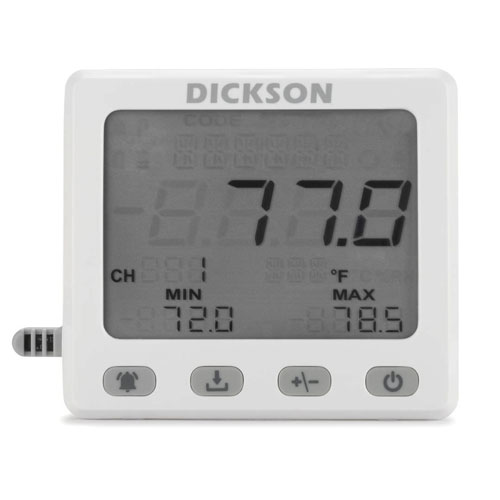

  • Display Type: LCD Display

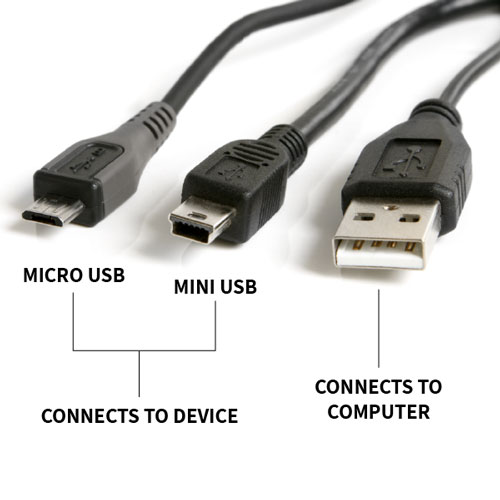

  • Download Type:  USB
  • Enclosure: White; ABS Plastic Clam Shell
  • IP Rating: 20
  • Mounting Options: Free Standing or Wall Mount (With Keyhole)
  • Power Source: Two user-replaceable AA Batteries (AC power adapter sold separately as A075)
  • Power Status Indicator: LCD Display
  • Sample Interval: User Selectable (10, 30, 60, 90 seconds, 2, 5, 10, 15, 30 minutes, and 1 hour).
  • Sensor Type: Replaceable Sensors including: ambient temperature and humidity, thermistor in buffer solution, RTD, K-thermocouple
  • Software Options: SW05, SW06
  • Data Logger Weight: 125g
  • Warranty: 12 Month Limited

Bundles include:

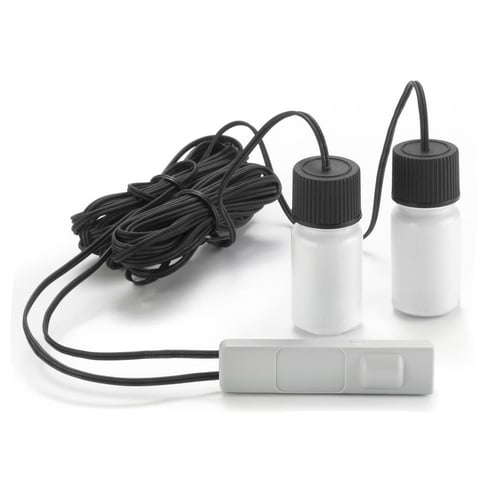

  • Dual Temperature Thermistor with Buffer
  • Display Data Logger Base Unit
  • DicksonWare 2.0
  • 1PT NIST Calibration



Data Logger Features:

  • USB enabled for fast downloading with Legacy Uploader
  • Easy-to-use interface
  • Audio and Visual alarms
  • Compatible with Replaceable Sensors (Patent Pending)



Software Features:

  • Easy installation
  • Easy logger setup and data downloads
  • Data visualization with tables and graphs
  • Automatic Mean Kinetic Temperature Calculations
  • Live Logging (excluding DSB/TSB)
  • Secure login with unique user accounts
  • Audit Trail
  • Unalterable data

Vaccine Storage Data Logger Quick Start Guide

Download
