BioChem-VacuuCenter Fluid aspiration system BVC professional

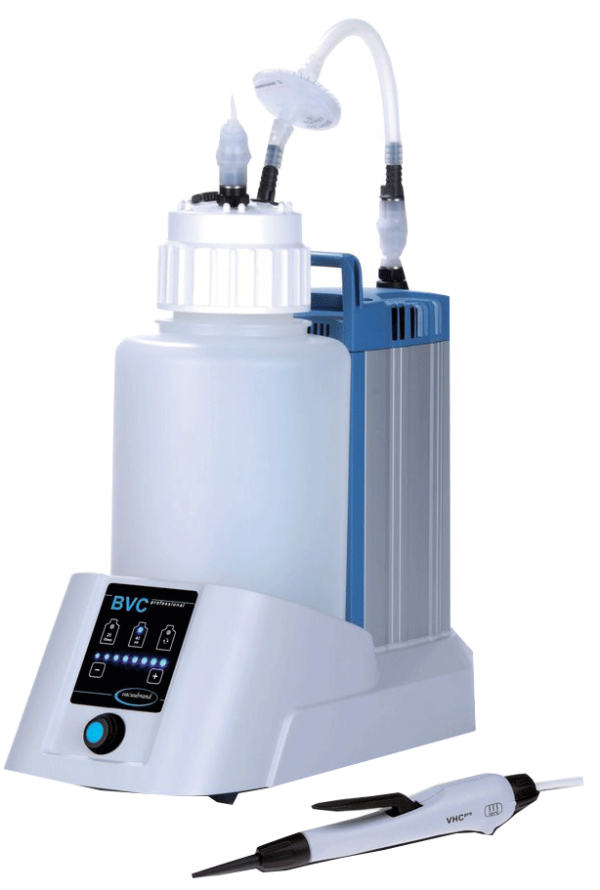

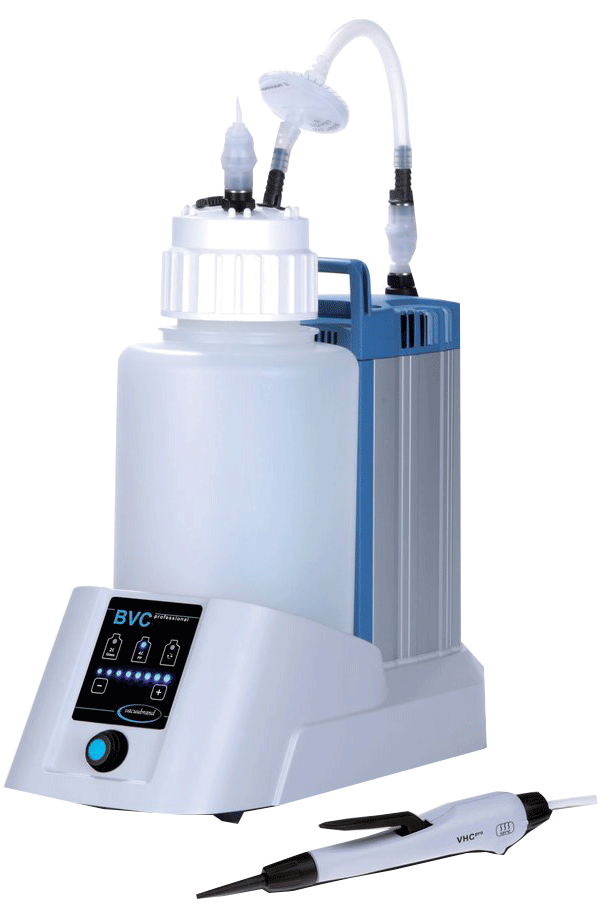

Item#: 20727403The BioChem-VacuuCenter BVC professional serves for aspiration and disposal of biological fluids, providing outstanding levels of comfort and safety for working with biological and biohazardous materials. A non-contact sensor monitors the liquid level in the collection bottle electronically and prevents overfilling. A disinfection routine allows the suction of disinfectants through aspiration hand set and tubing after switching off the pump, and so supports demanding safety protocols. The BVC professional with 4l PP bottle with self-closing quick couplings minimizes risk in transporting hazardous waste and of contamination in the workplace. The version with coated 2l borosilicate glass bottle allows you to work with aggressive disinfectants like chlorine bleach.
$3,510.00 $3,334.50
- Vacuum controller: Touchpanel
- Number of heads / stages: 1 / 1
- Max. pumping speed at 50/60 Hz: 0.7 / 0.85 m3/h
- Max. pumping speed at 50/60 Hz: 0.4 / 0.5 cfm
- Ultimate vacuum (abs.): 150 / 112 mbar/torr
- Control range: 150 - 850 mbar (adjustable)
- Collection bottle: 4l Polypropylene
- Ambient temperature range (operation): 10 – 40 °C
- Ambient temperature range (storage): -10 – 60 °C
- Max. back pressure (abs.): 1.1 bar
- Inlet connection: Suction controller
- Outlet connection: Hose nozzle DN 8 mm / silencer
- Rated motor power: 0.04 kW
- Rated motor speed at 50/60 Hz: 1500/1800 min-1
- Degree of protection: IP 40
- Dimensions: 408L x 194W x 500H (mm)
- Weight: 7.3 kg
- Noise level at 50 Hz, typ: 45 dBA
- Items supplied/Included: Fluid aspiration system complete with powerful chemistry diaphragm pump, collection bottle, adjustable suction power control via touch panel, non-contact liquid level sensor, quick couplings (4l PP version), aspiration hand set VHCpro and protection filter, ready for use with manual.
- With all the advantages of the BVC control
- Non-contact sensor for electronic monitoring of the liquid level in the collection bottle
- Disinfection routine for the suction tubing for drawing in disinfectant after switching off the pump
- Self-closing quick couplings (as accessory to the BVC professional G) for convenient and safe bottle change, e.g., for work with biohazards
- For professional work and a perfect fit for required safety protocols
Optional Accessories for purchase:
- Protection filter 0.2 µm hydrophob (638266)
- Suction Controller VacuuHandControl VHCpro (688061)
- Extension kit second suction controller connection (699943)
- Quick-fit coupling suction controller to bottle (635807)
- Quick-fit coupling bottle to pump (635808)
