MS7-H550-S Digital LED Magnetic Hotplate-Stirrer with Ceramic Glass Plate
Item#: 813221007 inch square hotplate magnetic stirrers are widely used in chemical synthesis, physical and chemical analysis, bio-pharmaceuticals and other fields. Magnetic hotplate-stirrers from Scilogex have a PID temperature technology which precisely controls the heating process, rapidly reaches target temperature and enhances control accuracy, heating up to +550°C. These units have glass ceramic plates which are extremely resistant to corrosion and easy to clean. An electronic speed control also ensures a constant speed is maintained, even during changes in load; they generally offer a rotation speed of up to 1500 rpm (depending on the model chosen). A wide variety of accessories are available including a PT-1000 sensor for accurately controlling the medium's temperature.
$710.00 $603.50
- Temp range: Ambient - 550°C
- Speed range: 0-1500rpm (Analog)
- Temp accuracy at plate: ±10°C
- Temp control accuracy of liquid using PT- 1000 Sensor: ±0.5°C
- Temp increments: 5°C
- Heat output: 1000W
- Max. Stirring Qty: 10 Liters
- Heating rate (1 liter water): 6K/min
- Heat display: LED
- Motor type: Shaded Pole
- Plate size: 7 x 7"
- Plate material: Ceramic-Glass
- Dimensions: 14"L x 8.5"W x 4.5"H
- Weight: 11lbs
- Voltage: 110Volts 50Hz/60Hz
- Easy-to-read LED display
- Heat only, stir only or heat and stir together functions
- Low temperature stability
- Accessory PT-1000 sensors for medium temperature control available
- Electronic speed control for constant speed even during changes in load
- High magnetic adhesion
- Hot warning above 50°C
- 2 YEAR WARRANTY
-
Purple Quarter Reaction Blocks for Scilogex Hotplates-Stirrers (Capacity: 4 x 20ml Vials)
Item #: 18900003$92.00$78.20 -
Red Quarter Reaction Blocks for Scilogex Hotplates-Stirrers (Capacity: 11 x 4ml Vials)
Item #: 18900002$110.00$93.50 -
PT1000 Sensor with Glass Protective Sleeve for MS-H-Pro-Plus, MS7-H550-Pro, MS7-H550-S-LED & MS-H280-Pro
Item #: 18900136$214.00$181.90 -
Black Quarter Reaction Blocks for Scilogex Hotplates-Stirrers (Capacity: 4 x 16ml Vials)
Item #: 18900005$104.00$88.40 -

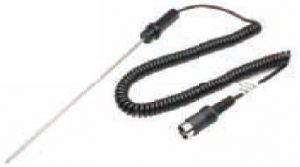

PT-1000 Temperature Sensor for MS-H-Pro-Plus, MS7-H550-Pro, MS7-H550-S-LED & MS-H280-Pro Hotplate-Stirrers
