MVE XC 43/28 Cryogenic Freezer

MVE XC 43/28 Cryogenic Freezer with (6) 11″ Canisters (Capacity: 1,764 x 1/2cc Straws)

Item#: 9918039

The XC Series tanks are manufactured to a world class level of excellence.  These durable, lightweight LN2 dewars can be relied on to perform in the most demanding of environments.  The XC Series is designed for the user who requires large capacity storage and low liquid nitrogen consumption in a convenient lightweight package.



This product has been discontinued. Please see the MVE XC 34/18 or MVE XC 47/11-6 for a comparable model.

$2,089.00

Add to wishlist
REQUEST A QUOTE
Supplier:
Tag:
  • Maximum Storage Capacity
    • Number of Canisters: 6
    • Number of ½ cc Straws 10/cane: 1,260
    • Number of ½ cc Straws 1 Level Bulk: 1,764
    • Number of 1.2 & 2.0 ml vials 5/cane: 360
    • Number of Rack 25 Vials: N/A
  • Performance
    • LN2 Capacity L: 42.2
    • LN2 Capacity Below Spider L: N/A
    • Static Evaporation Rate* L/day: 0.14
    • Normal Working Duration, Full Days: 193
  • Unit Dimensions:
    • Neck Opening in. (mm): 2.75 (70)
    • Overall Height in. (mm): 26.4 (670)
    • Overall Inner Height in. (mm): N/A
    • Outer Diameter in. (mm):  20.0 (508)
    • Canister Height in. (mm): 11 (279)
    • Canister Diameter in. (mm):  2.22 (56)
    • Distance: Platform to Top of Neck in. (mm): N/A
    • Weight Empty lb. (kg): 36 (16.4)
    • Weight with Canisters lb. (kg): N/A
    • Weight Full lb. (kg): 111.0 (50.5)

*Does Not Include Straws and Vials*

  • Designed for large capacity storage
  • Low liquid nitrogen consumption
  • Convenient lightweight package
  • Durable, tamper-proof lid design
  • High strength neck tub reduces liquid nitrogen loss
  • Strong light weight aluminum construction
  • Advanced chemical vacuum retention system
  • Spider design on platform for easy retrieval and insertion of product canisters
  • Warranty: 2 year parts ; 3 year vacuum

MVE XC Series Spec Sheet

Download

Chart MVE Accessories Catalog

Download

You may also like…

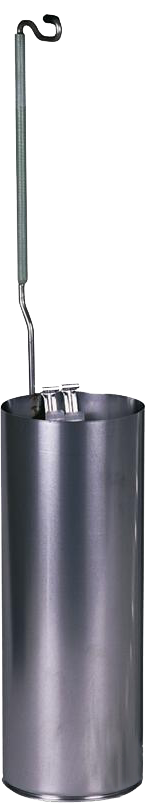

  • 11″ Canister for MVE XC 43/28 & XC 33/22 Liquid Nitrogen Systems

    Item #: 14782437 $59.00 VIEW PRODUCT

  • Transfer Hose for MVE LN2 Systems (4′ x 1/2″ Dia.)

    Item #: 9713159 $217.00 VIEW PRODUCT

  • Transfer Hose with Medium Sized Phase Separator for MVE LN2 Systems (use with discharge device)

    Item #: 14044151 $176.00 VIEW PRODUCT

  • Transfer Hose with Small Sized Phase Separator for MVE LN2 Systems (use with discharge device)

    Item #: 14044143 $136.00 VIEW PRODUCT

  • Roller Base for MVE CryoSystem 750, XC 47/11-6, XC 47/11-10, & XC 43/28 Liquid Nitrogen Systems

    Item #: 10937411 $391.00 VIEW PRODUCT

  • Replaceable Neck Cork for MVE XC 43/28 & XC 33/22 Liquid Nitrogen Systems (Dewar Neck Opening Diameter: 2.75″)

    Item #: 10507067 $111.00 VIEW PRODUCT

  • Medium Aluminum Dewar Phase Separator for MVE LN2 Systems (1 5/16″ x 3″)

    Item #: 10615877 $116.00 VIEW PRODUCT

  • Small Aluminum Dewar Phase Separator for MVE LN2 Systems (11/16″ x 1 1/2″)

    Item #: 10615885 $64.00 VIEW PRODUCT

  • Transfer Hose for MVE LN2 Systems (6′ x 1/2″ Dia.)

    Item #: 9713109 $290.00 VIEW PRODUCT

  • 1.5″ Cabosil Vapor Canister Insert

    Item #: 10736409 $64.00 VIEW PRODUCT

  • Cool Reach for Retrieving Ampules and Canes

    Item #: 13051579 $269.00 VIEW PRODUCT

  • 47″ Long Liquid Measuring Stick for Liquid Nitrogen (pack of 5)

    Item #: 20561020 $105.00 VIEW PRODUCT

  • Phase Separator with Rigid Discharge Device Nozzle for MVE LN2 Systems

    Item #: 11734421 $193.00 VIEW PRODUCT

Request a Proposal

Related Products

  • MVE SC 36/32 Cryogenic Dewars (780 x 1/2cc Straws)

    Item #: 10829621 $1,857.00 VIEW PRODUCT
  • MVE XC 34/18 Cryogenic LN2 Freezer

    MVE XC 34/18 Cryogenic Freezer with (6) 11″ Canisters (Capacity: 3,000 x 1/2cc Straws)

    Item #: 10743027 $1,680.00 VIEW PRODUCT
  • MVE XC 32/8 Cryogenic Ln2 Freezer

    MVE XC 32/8 Cryogenic Freezer with (9) 11″ Canisters (Capacity: 3,960 x 1/2cc Straws)

    Item #: 9918449 $2,114.00 VIEW PRODUCT
  • MVE XC 33/22 Cryogenic LN2 Freezer

    MVE XC 33/22 Cryogenic Freezer with (6) 11″ Canisters (Capacity: 1,764 x 1/2cc Straws)

    Item #: 9918069 $1,725.00 VIEW PRODUCT

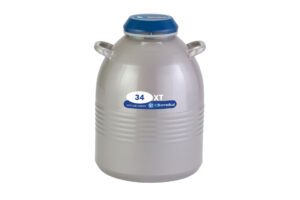

  • IC Biomedical XT34 Cryogenic Sample Storage with (6) 11″ Canisters (1500 x 1/2cc Straws)

    Item #: 34XTB-11M $1,658.63 $1,409.84 VIEW PRODUCT

  • IC Biomedical XT34 Cryogenic Sample Storage with (6) 5″ Canisters (1500 x 1/2cc Straws)

    Item #: 34XTB-5S $1,658.63 $1,409.84 VIEW PRODUCT
  • MVE Doble 34 Aluminum Cryogenic Dewar/Cryoshipper with QWick Technology

    MVE Doble 34 Aluminum Cryogenic Dewar/Cryoshipper with QWick Technology (32L / 2100 x 1/2cc Straws)

    Item #: 11497948 $2,032.00 VIEW PRODUCT

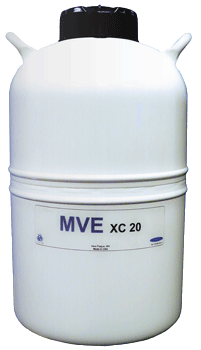

  • MVE XC 20 Cryogenic Sample Storage (879 x 1/2cc Straws)
