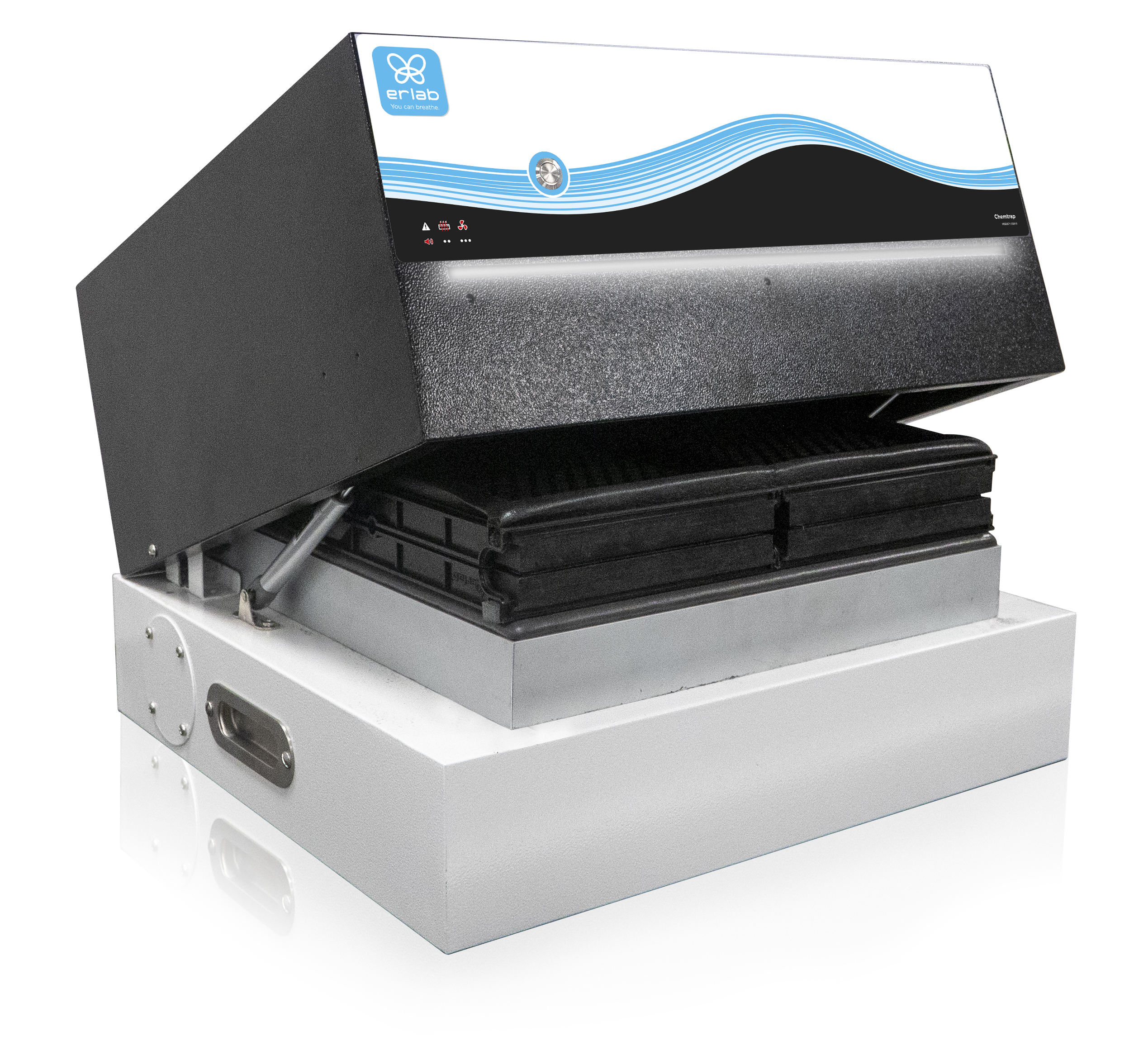

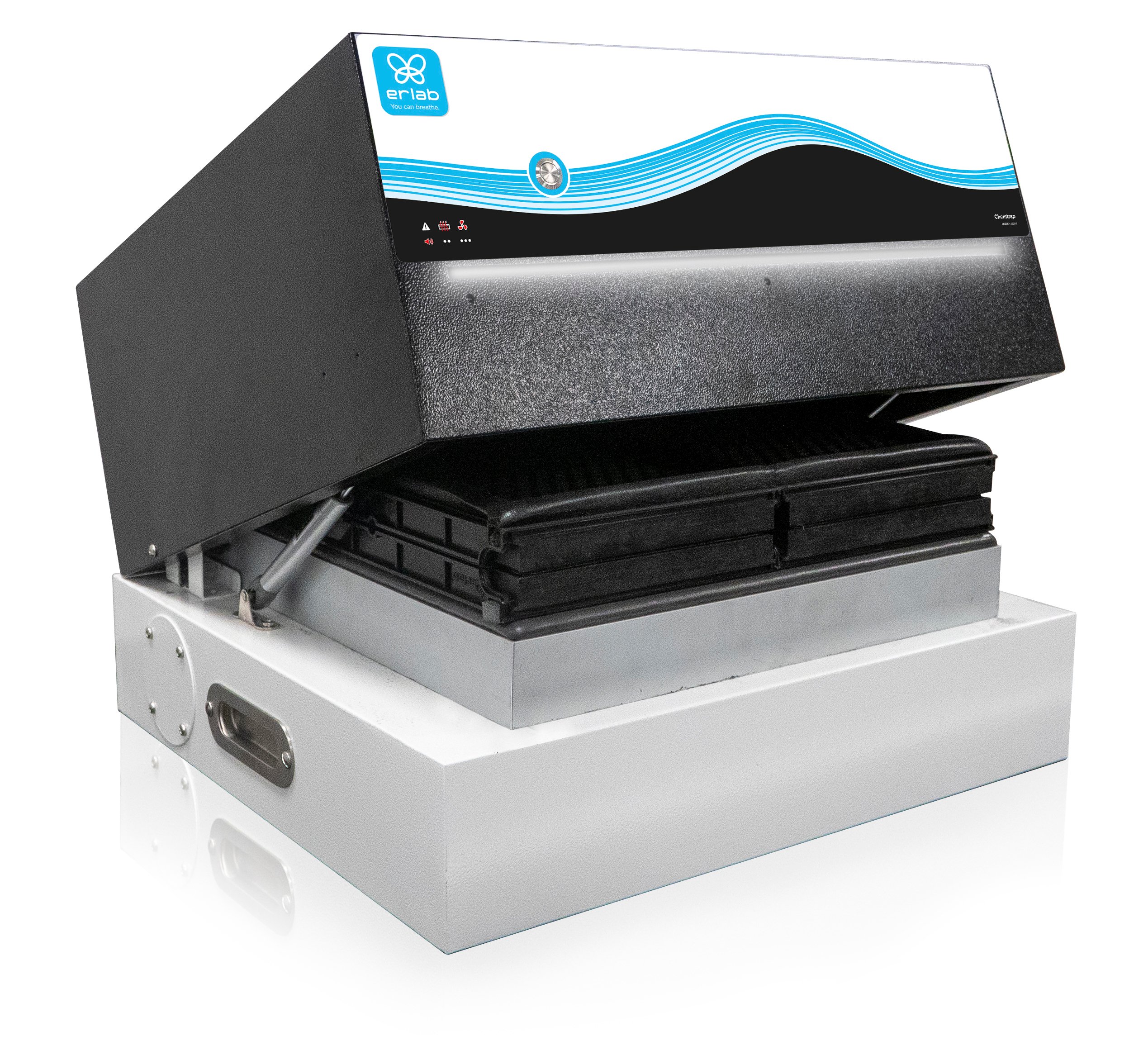

Erlab Chemtrap Chemical Storage Cabinet Filtration System (vertical)

Item#: CHEMTRAPH402V1 Request a Quote
  • External Width (mm/in): 390mm/ 15 3/8 in
  • External Depth (mm/in): 570mm/ 22 ½ in
  • External Height (mm/in): 267mm/ 10 ½ in
  • Air Flow: 75 m3 /h
  • Voltage/Frequency: 230 V / 50 Hz
  • Energy Consumption: 19 W
  • Flexible PVC pipe (meter / feet): 1 meter / 3 1/4’ ( ∅ 80 mm)
  • PVC fitting: ∅ 75-80-100 mm
  • Sampling port for filter breakthrough test
  • Fan failure alarm to monitor
  • Securifilter alarm for detection of solvent breakthrough
  • Filtration:
    • Types AS: For storage of organic vapors
    • Types BE: For storage of the organic vapors and acids mainly
    • Types HP: HEPA H14 for powders storing (Traps particles larger than 0.1 μm with 99.995% efficiency, according to the MPPS method set forth in the EN 1822-1 standard.)
  • Structure:
    • Metallic Parts: Anti-corrosion steel coated with 100% polyester.
    • Filtration module: Injected polypropylene
    • Pipe and fitting: PVC
  • Versions/Features:
    • Sampling Port
    • Sampling port + Fan Failure
    • Sampling port + Fan Failure + Securifilter
    • Sampling port + Securifilter
