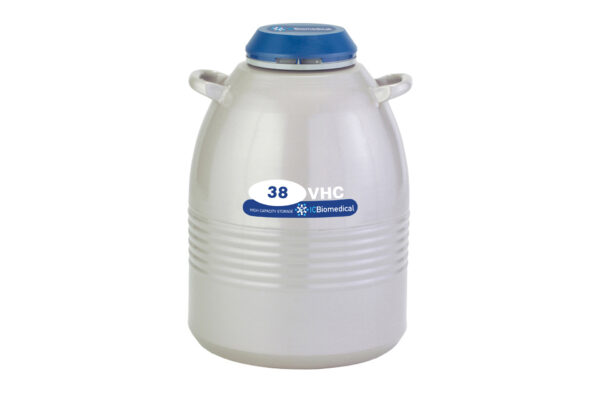

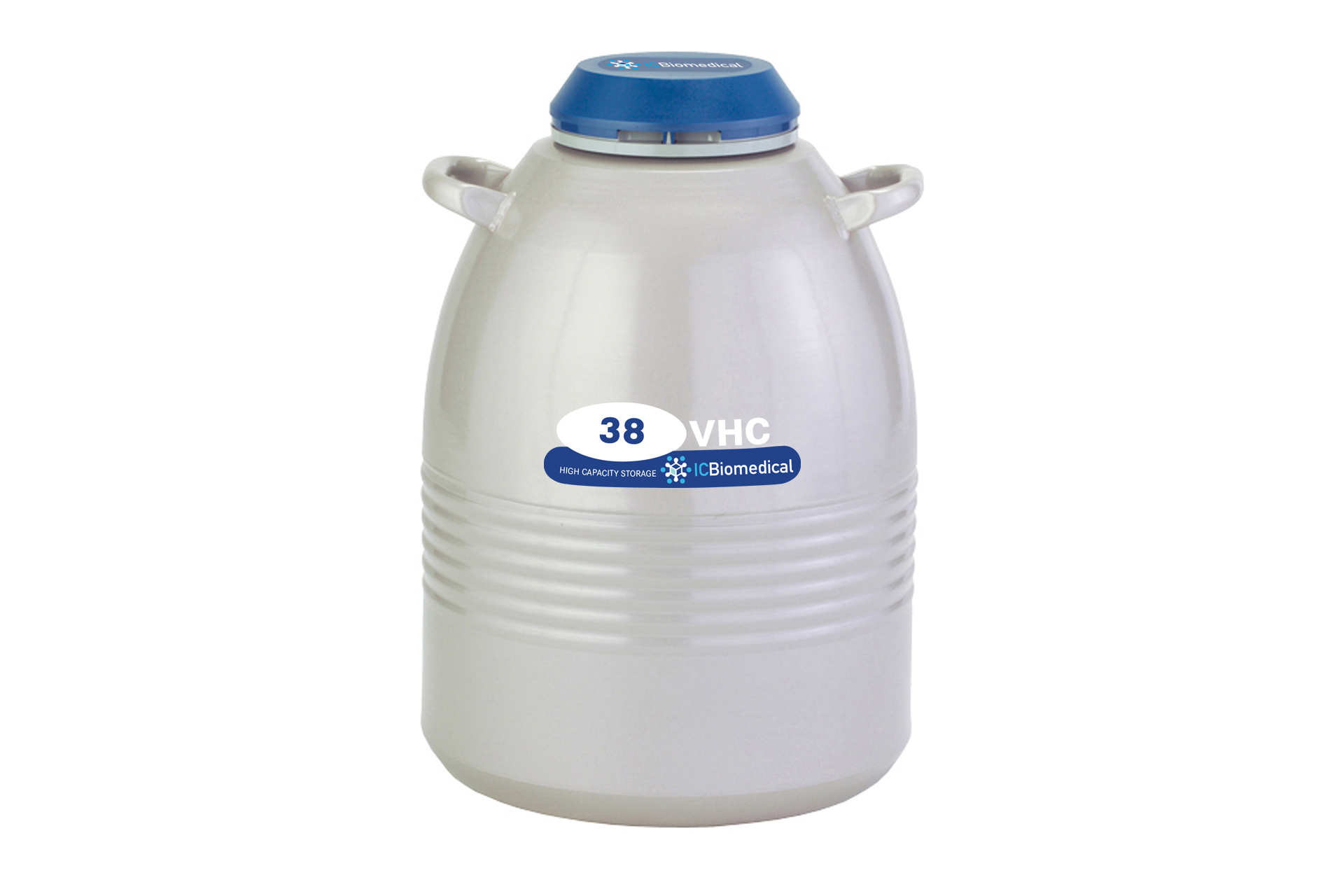

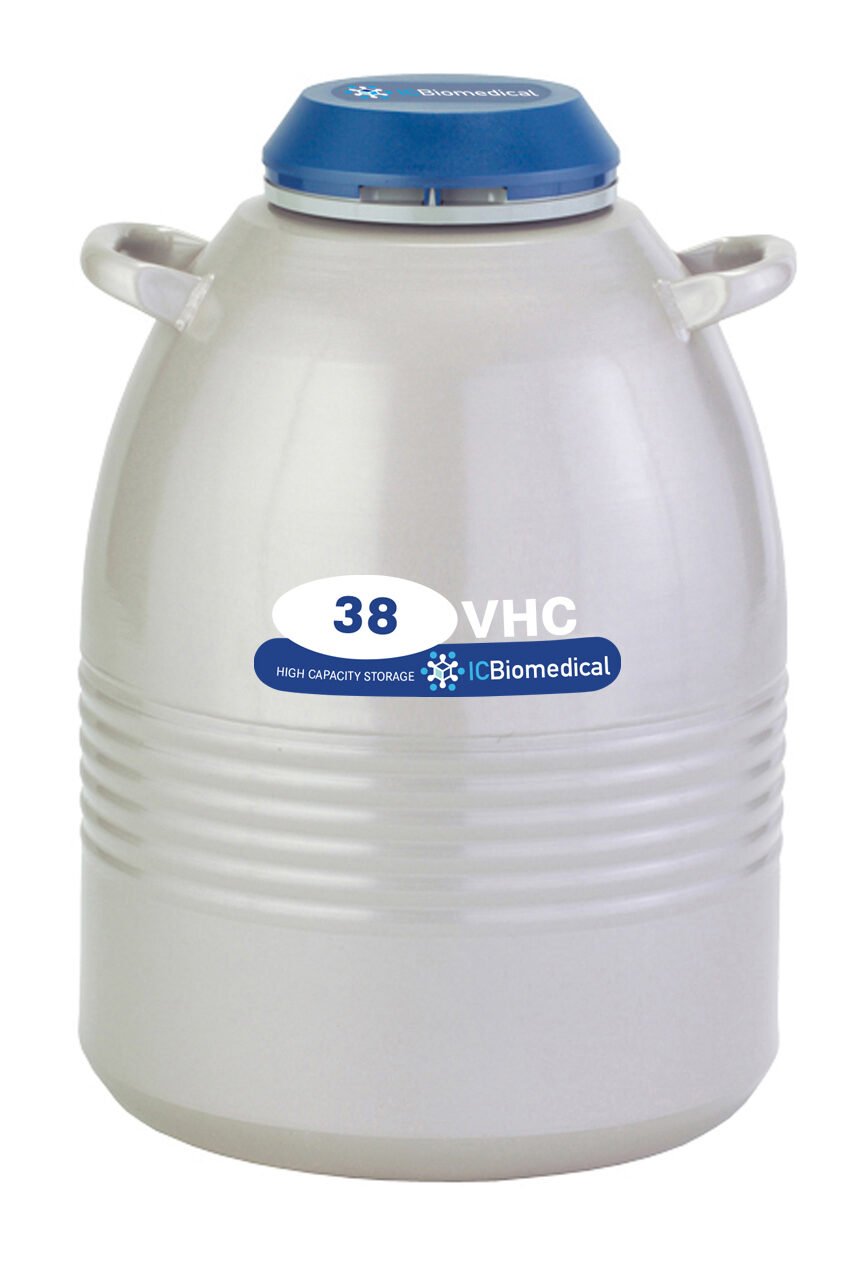

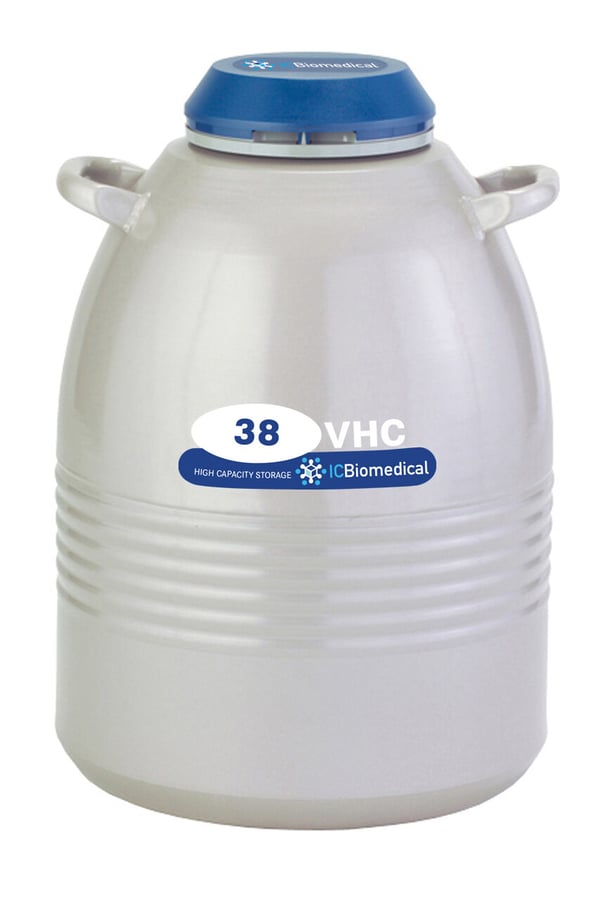

IC Biomedical VHC38 Series Liquid Nitrogen Freezer with (6) 11″ Canisters (Capacity: 1,512 x 2.0 ml vials)
Item#: 38VHC-11MThe HC Series Liquid Nitrogen LN2 dewars are designed for storing large quantities of a variety of materials at cryogenic temperatures. They provide temperatures of -196ºC at the liquid surface and -190ºC at the canister top.
$2,110.00 $1,793.50
- Capacity (Liters.): 38
- Empty Weight: 38.2 lbs. (17.3 kg)
- Full Weight: 104.7 lbs. (47.5 kg)
- Neck Diameter: 5" (127mm)
- Outer Diameter: 18.8" (478mm)
- Total Height: 26.8" (681mm)
- Static Evaporation Loss Rate (Liters/day): 0.31
- Static Holding Time (Days): 120
- Canister O.D.: 4.13" (105mm)
- Canister Height: 11" (279mm)
- No. of Canisters (No.): 6
- Straw Holding Capacity Single Level (0.5ml): n/a
- Straw Holding Capacity Double Level (0.5ml): 11,520
- Warranty: 5 years vacuum
*Comes complete with necktube core and canisters.
**Straws, canes and vials are not included. See below for available canes (5 cases required) and vials (2 cases required)...
(1) Evaporation rate and static holding time are nominal. Actual rate may be affected by the nature of the contents, atmospheric conditions, container history, and manufacturing tolerances.
(2) Work time is an arbitrary, reference-only value to estimate container performance under actual operating conditions.
(3) Without canisters.
(4) Optional 7th canister available to increase storage capacity by 23%.
- Large storage capacity
- New rugged construction including ribbed high strength aluminum body, magniformed necktube design, and more durable paint
- Convenient canister numbered index location ring and tapered internal spider
- Superior vacuum performance with super insulation provides maximum holding times
- Security - optional low-level alarm is available with remote monitor and lockable lid
- Mobility - roller base is available
- Warranty: 5 years vacuum
-
Transfer Hose for IC Biomedical LN2 Systems- 6′ – CGA 295 x CGA 295
Item #: 1600-9C68$581.90$494.62 -
IC Biomedical Model 83 Phase Separator (1 1/4″ x 1/2″ OD, 1/8″FNPT)
Item #: 1193-8C83$70.40$59.84 -
Model 82 Phase Separator for IC Biomedical LN2 Systems (1 1/4″ x 1″ OD, 3/8″ FNPT)
Item #: 1193-8C82$66.00$56.10 -
IC Biomedical Replaceable Necktube Cork for VHC38 Liquid Nitrogen Systems (Dewar Neck Opening Diameter: 5”)
Item #: R038-9C17$107.80$91.63 -

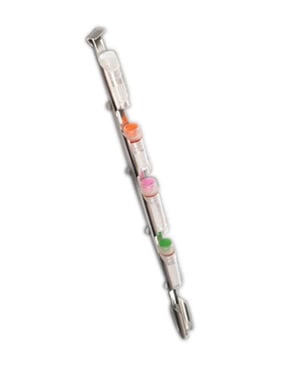

Aluminum Canes for Liquid Nitrogen Systems
Item #: T313$54.96$46.72 -
Transfer Hose for IC Biomedical LN2 Systems- 4′ – CGA 295 to 3/8″ NPT
Item #: 1700-9C65$445.50$378.68 -

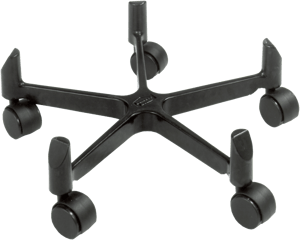

IC Biomedical Roller Base for LS750, HC34, HC35, VHC35, XT34, LD35, & LD50 Liquid Nitrogen Systems
