In-VitroCell ES NU-5831 Direct Heat Hypoxic CO2 Incubator | Dual Sterilization Cycles & Oxygen Contr

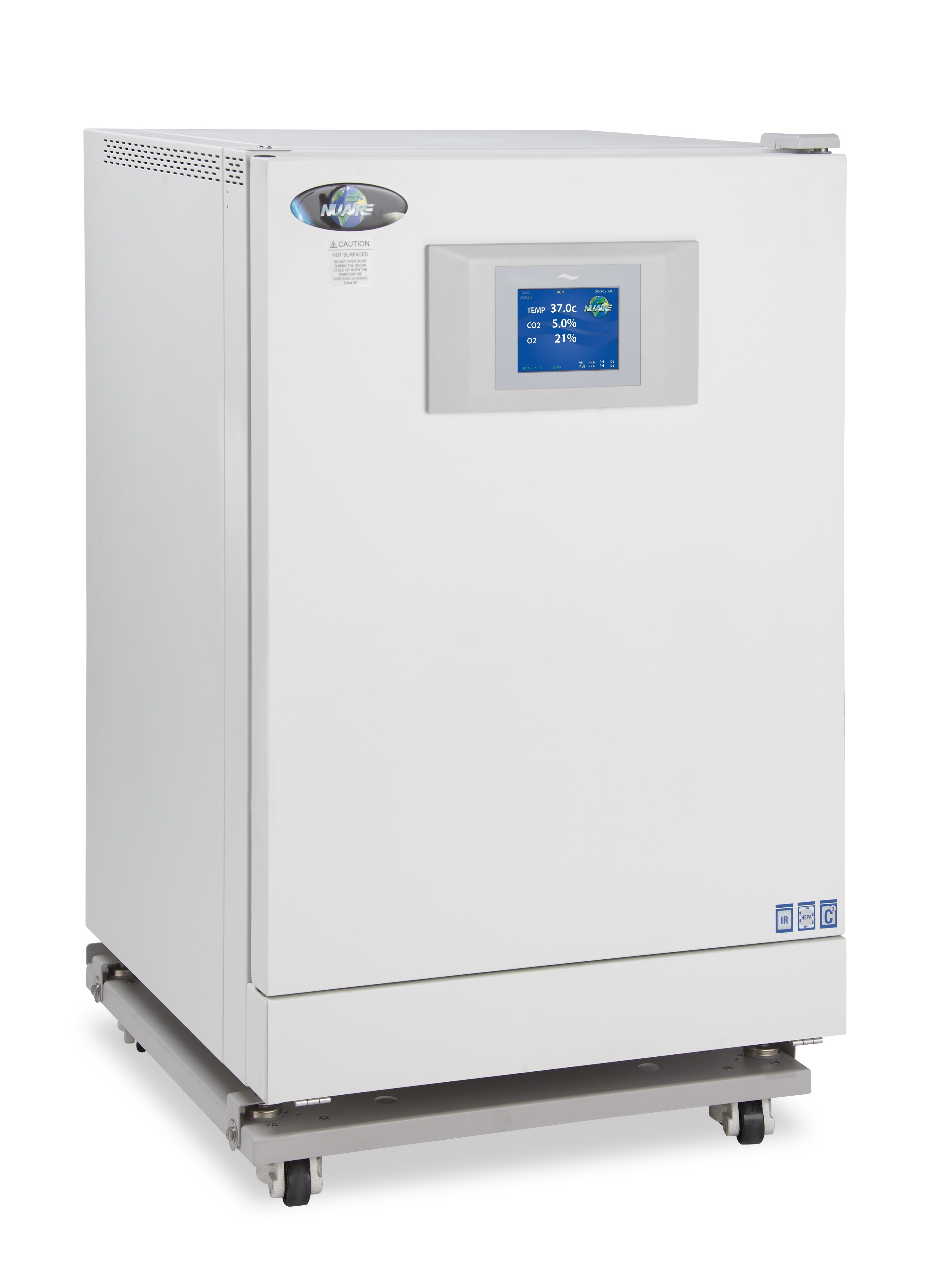

Item#: NU-5831The NuAire NU-5831 In-VitroCell ES (Energy Saver) Direct Heat Hypoxic CO2 Incubator is designed to provide a reliable, controlled in-vitro environment suitable for growing tissue cell cultures as well as storing and preserving embryos, gametes and animal tissue cell cultures. This incubator features a dual sterilizing system with a 95°C humidified decontamination cycle and a 145°C dry sterilizing cycle, a microprocessor-based dual wave infrared (IR) sensor for controlling the CO2 levels and a Zirconia ceramic O2 fuel cell sensor to keep oxygen levels between 0.5% and 21%. We offer a number of optional features including CuVerro® antimicrobial copper surfacing for killing bacteria*** within the chamber.
Supplier: NuAire
Tag: Laboratory IncubatorsDimensions:
- Exterior Dimensions (W x D x H): 26.75 x 27.12 x 41.5 in. (679.5 x 689 x 1054 mm)
- Foot Print (W x D): 23.75 x 20.75 in. (603.2 x 527.1 mm)
- Interior Dimensions (W x D x H): 21.5 x 21 x 26.5 in. (546.1 x 533.4 x 673.1 mm)
- Volume: 7.06 ft3 (200 L)
- Net Weight: 235 lbs (106 kg)
Temperature Control:
- Control Range: 5° above ambient (to a 30° max ambient) to 55°
- Set-Point Range: 5°C to 55°C (37.0 Default)
- Uniformity: ±0.35°C @ 37°C
- Accuracy: ± 0.1°C
- Recovery: 0.12°C/min. on Average
- Display Resolution: 0.1°C
- Door and Perimeter Heater Control Logic: Base Duty Cycle set to chamber temperature Set-Point Proportional 0-100% [manually adjustable]
- Temperature Sensor Type: Precision Integrated Circuit
CO2 Control Standard:
- Range: 0.1 to 20% 5% Default Set Point
- Accuracy: ±0.1%
- CO2 Recovery: Up to 5% ±0.2% / -0.5 in 5 minutes Average
- CO2 Display Resolution: 0.1%
- CO2 Control Logic: Fixed Algorithm/Manual, Environmental Adaptable
- CO2 Sensor Type: Infrared (NDIR)
Oxygen Display and Control:
- Control Range: 0.5 -21.0% (ambient) (21.0% Default)
- O2 Accuracy: +0.25%
- Display Resolution: 0.1%
- RH Control Logic: Fixed algorithm/manual environmental adaptable
- RH Sensor Type: Zirconia Ceramic
- Four (4) Stainless Steel Shelves
- Eight (8) Stainless Steel Shelf Guides
- Four (4) Shelf elf Brackets
- Field Reversible Outer Door
- Remote Alarm Output Contacts
- 4 to 20 mA Analog Output
- RS-485 Communication
- USB Port
- CO2 Sample Port
- Adjustable Leg Levelers
- Access Port and plug with breather holes
- One (1) Water Pan
- One (1) 6.5 ft. / 2 m Electrical Cord
*** Laboratory testing shows that, when cleaned regularly, CuVerro® antimicrobial copper surfaces kill greater than 99.9% of the following bacteria within 2 hours of exposure: MRSA, Staphylococcus aureus, Enterobacter aerogenes, Pseudomonas aeruginosa, and E. coli O157:H7. CuVerro® antimicrobial copper surfaces are a supplement to and not a substitute for standard infection control practices and have been shown to reduce microbial contamination, but do not necessarily prevent cross contamination; users must continue to follow all current infection control practices, including those practices related to cleaning and disinfection of environmental surfaces. CuVerro® is a registered trademark of GBC Metals, LLC and is used with permission. NA-003-1208
NuAire In-VitroCell CO2 Incubator Product Brochure
DownloadNU-5800 Series Direct Heat CO2 Incubator Specifications
