- Weight: 22 lbs
- Dimensions: 14 × 15 × 12 in
- Bath volume (L / cu ft): 3.5 / 0.1
- Working temp. range (℃ / ℉): Amb. +7 to 100 / Amb. +12.6 to 212
- Temp. stability at 50℃ (±℃ / ℉): 0.4 / 0.72
- Heat up time to 70℃ (min): 25
- Bath opening / depth (W x L, D) (mm / inch): 240 x 136, 115 / 9.4 x 5.4, 4.5
- Exterior (W x L x H) (mm / inch): 303 x 242 x 245 / 11.9 x 9.5 x 9.6
- Net weight (kg / lbs): 6.5 / 14.3
- Electrical requirements (120V, 60Hz): 60Hz, 5.8A

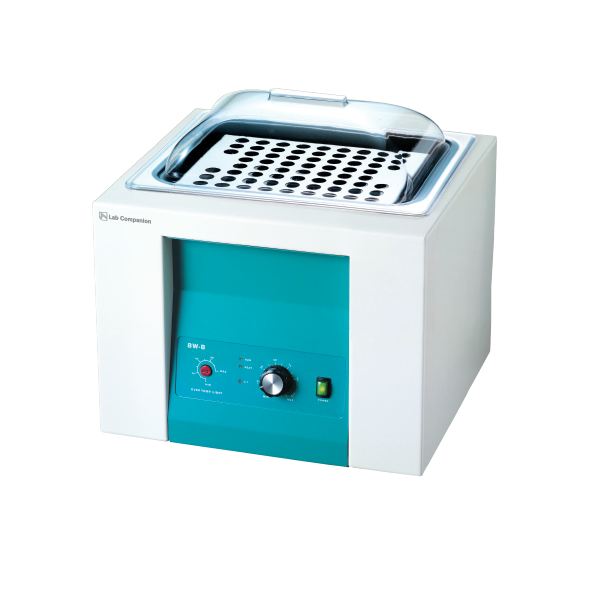

Lab Companion BW-05B Heating Bath Circulator l 3.5LItem#: AAH46013U
Economical water bath for easy use.
- Economical water bath for easy use.
- Over temperature limiter.
REQUEST A QUOTE
Structural Functional Features
- The internal bath is integral structure and It is made of stainless steel and has excellent durability.
- Compact design for excellent space utilization.
- The control part at the bottom front is tilted, making it easier to set up the product and check information.
- Convenient to use as the power switch is located on the front.
Use Convenience Features
- Intuitive and scale-type easy temperature setting make it suitable for simple experiments.
- Mounting accessories of various types and sizes convenience. (option)
- Safe structure in which the heater, sensor, and pump inside the bath are separated by covering plates.
- Over temperature limit function.
