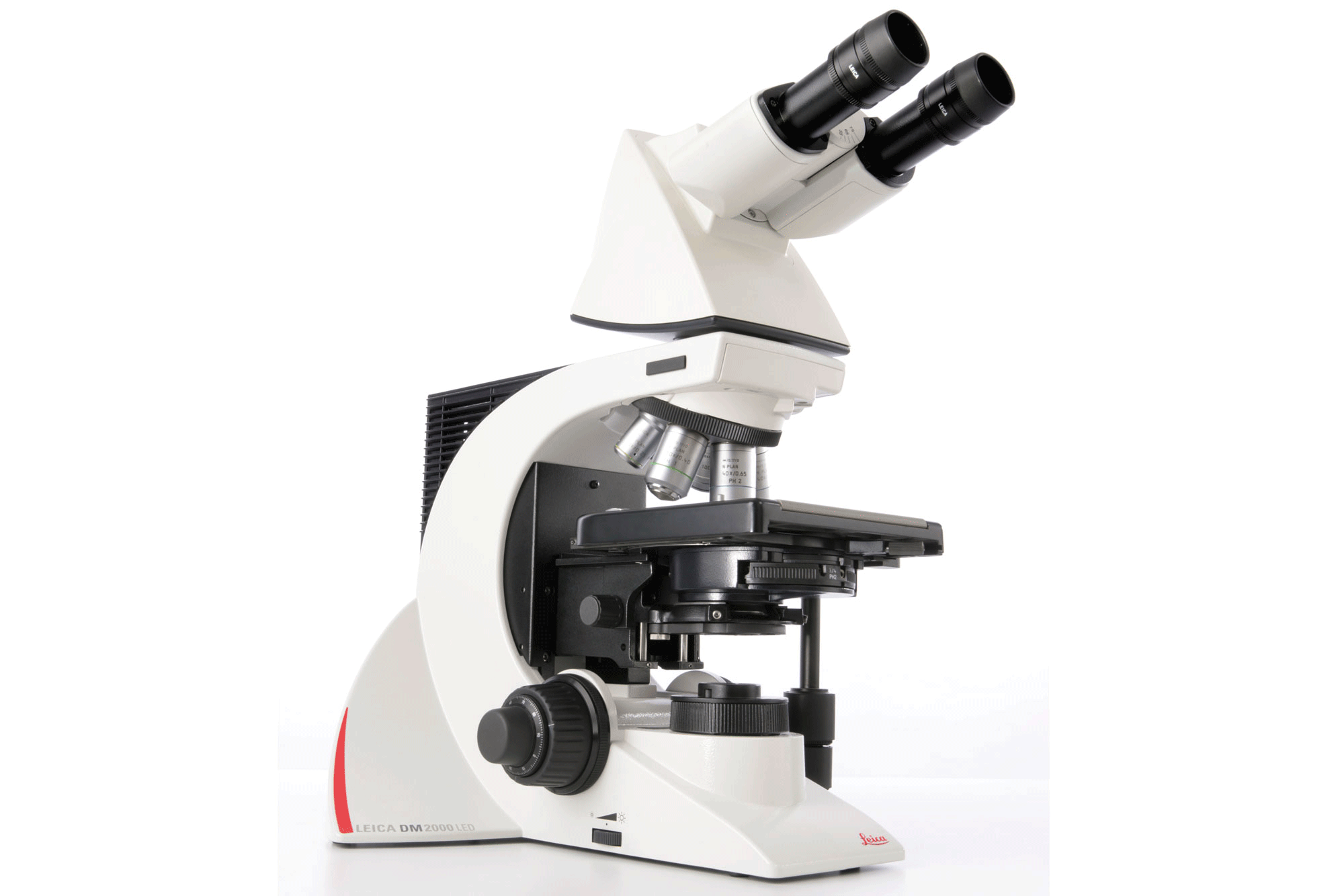

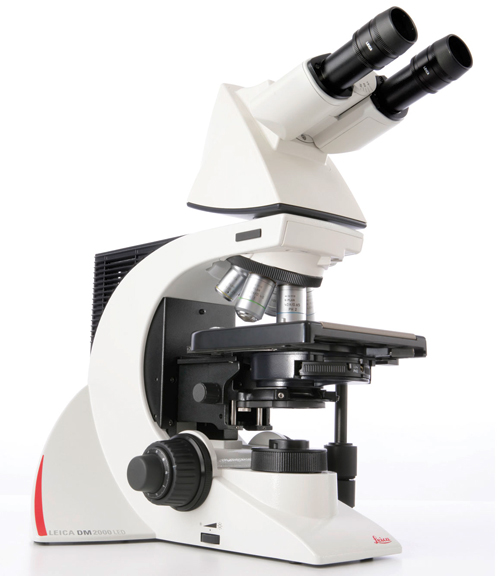

Leica DM2000 Ergonomic System Microscopes for Complex Clinical Applications
Item#: DM2000The high performance DM2000 microscope from Leica provide an ergonomic system for complex tasks in pathology, cytology, and many other applications. For special diagnostics requirements, the microscope is certified for in-vitro-diagnostics (IVD) like in-vitro-fertilization (IVF). The Leica DM2000 microscopes can be configured with a variety of optics and contrast techniques to meet the specific requirements of demanding applications.
Stand
- Power supply:
- Integrated
- Koehler:
- Variable Koehler Illumination

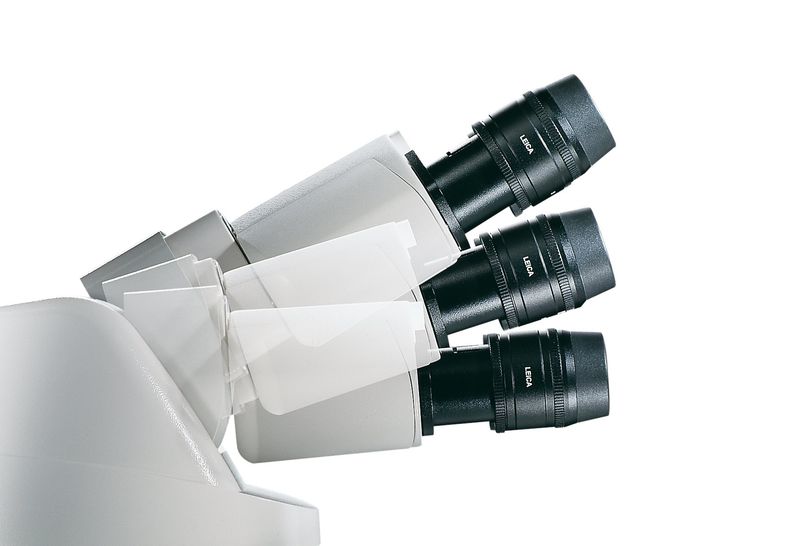

- Eyetubes:
- Ergotube 15° viewing angle FOV 22
- Standard tube 30° viewing angle FOV 22
- Ergo tilting eyetube FOV 25 (long)
- Ergo tilting eyetube FOV 22 (short)
- Advanced ergo tilting eyetube FOV 22
- Phototubes:
- Trinocular ergo tilting phototube 50/50 FOV 22
- Trinocular ergo tilting phototube 100/100 FOV 25
- Trinocular ergo tilting phototube 50/50 FOV 25
- BDT25 0/50/100 dual port option FOV 25
- EDT22 50/50 FOV 22
- Ergomodules
- 30 mm or 60 mm
- variable 50-80 mm
Operation
- Focus:
- Height adjustable focus knobs
- 5 focus functions: 2- or 3-gear focusing, focus-stop, adjustable torque
- Objective Turret:
- 6-fold
- 7-fold
- Objective:
- Brightness synchronized objective series 4x, 10x, 40x
- Stage:
- Ceramic-coated (ultra-hard ceramic)
- Left/right (exchangeable by user)
- Rack less
- Telescopic drive
- Adjustable torque
- Rotatable / stage for two slides (option)
TL Axis
- Illumination:

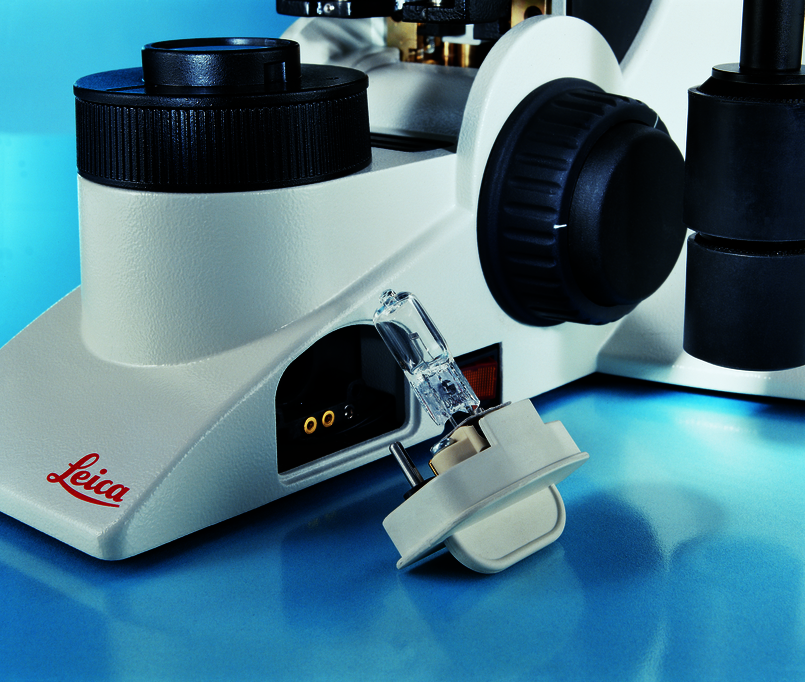

- 12 V/30 W halogen lamp, easy bulb-exchange (with special drawer)
- Filtering:
- Flip-out blue filter
- Filter holder for 2 filters
- Filter magazine for 3 filters
- Condenser:
- Standard condenser CL/PH color coding (2.5x–100x)
- Apl. Flip top condenser color coding (1.25x–100x)
- Universal condenser UCL BF/Phase/DF
- Universal condenser UCA BF/Phase/DF/DIC
- Contrast methods:
- BF
- DF, PH, POL
- DIC

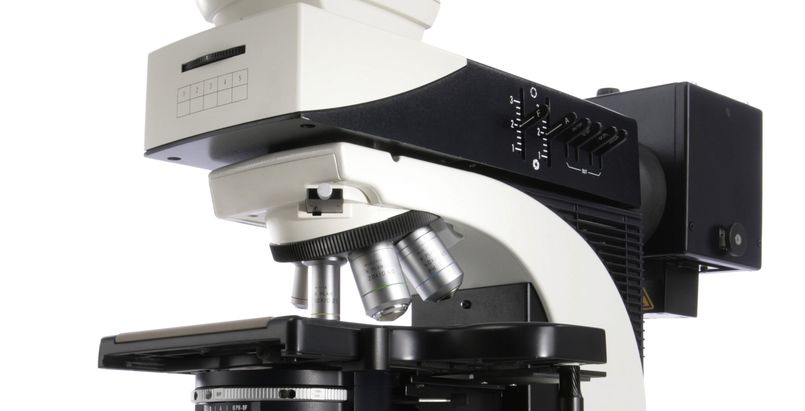

Flou-Axis
- Illumination:
- 50 W or 100 W Hg
- 75 W Xe
- 12 V/100 W halogen lamp
- Leica SFL100/SFL4000
- Filter cube changer:
- 5-position filter cube turret
