Refrigerated Immersion Cooler System for 26L & 38L Heated Circulating Baths with a Stainless Steel Tank (-15° to +40°C)

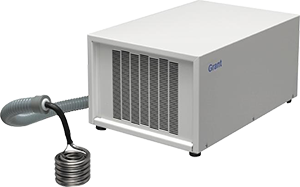

Item#: C2GLCooling systems allow heated circulating baths to operate at or below ambient temperature by means of a cooling coil* dipped into the bath; designed for minimal impact on working are. This refrigerated immersion cooler consist of a cooling coil connected to a refrigeration unit by a flexible pipe. Extract heat continuously, with the bath control unit controlling temperature.
*The cooling coil can be continuously immersed in liquids up to +100°C with the cooler switched off, and may be used to cool liquid down from +100°C, but it is not designed for continuous operation above +40°C.
**Minimum operating temperature without accessory cooling is ambient +5°C (amb. +15°C for 5L tanks).
$2,263.16 $2,150.00
- Temperature: -15° to +40°C**
- Cooling Power:
- @ 20°C: 400W
- @ 0°C: 320W
- @ -10°C: 170W
- Overall Consumption: 500VA
- Dimensions: 8.9"H x 12"W x 18.1"D
- Weight: 46.3 lbs.
- Flexible Pipe(I): 36.4"
- Coil (Ø/I): 3" / 2.2"
- Electrical Supply: 120V, 60Hz
Request a Proposal
