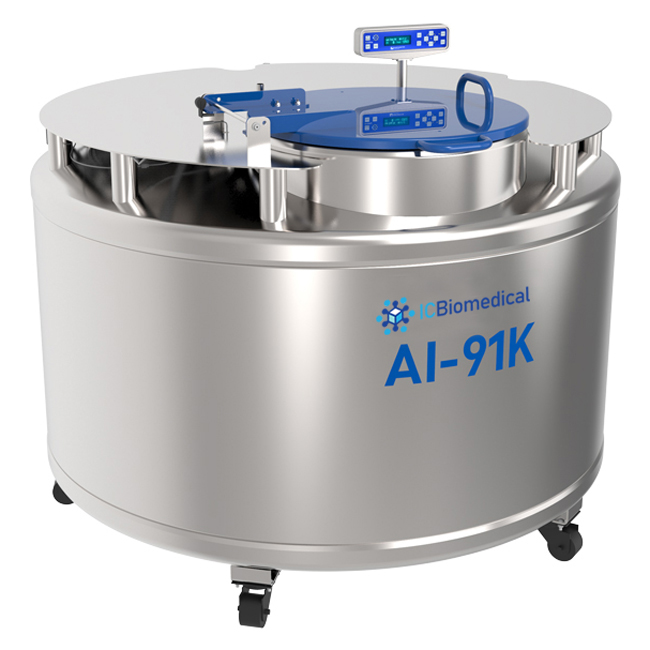

IC Biomedical LABS AI-91K LN2 Freezer for Bulk Semen Storage (Capacity: 23,520 x 2.0 ml vials)
Item#: AI-91KThe highly efficient AI-91K Liquid Nitrogen Freezer from Worthington Industries offers a large capacity cryogenic storage solution designed for the Animal Husbandry markets. This freezer offers very low LN2 consumption and features a single pivot point aluminum turntable design for a smooth rotation and ergonomic use.
- Liquid Nitrogen Capacity (L): 916L
- Number of SUC-1 Canisters: 294
- Number of 1.2 ml vials on canes: 42,336
- Number of 2.0 ml vials on canes: 23,520
- Number of 1/2 cc straws (10/cane): 91,140
- Number of ¼ cc straws (28/cane): 255,192
- Bulk Straw Storage, ½ cc straws (2 levels, 65mm goblets): 200,800
- Bulk Straw Storage, ¼ cc straws (2 levels, 65mm goblets): 431,720
- Neck Opening in. (mm): 24.5” (622mm)
- Usable Internal Height in. (mm): 13” (332mm)
- Inner Diameter in. (mm): 56.83” (1443mm)
- Overall Height in. (mm): 44.7” (1135mm)
- Door Width Requirement in. (mm): 60” (1524mm)
- Weight Empty lb. (kg): 1516lb. (688kg)
- Weight Liquid Full lb. (kg): 3146lb (1427kg)
High efficiency – very low LN2 consumption
- Storage capacity of 91,140 0.5cc straws (10 straws per cane)
- LN2 storage in either liquid or vapor phase
Single pivot point aluminum turntable design – smooth rotation and ergonomic use
- Eliminates any mechanical component maintenance
- Full height, segmented and labeled turntable provides easy inventory storage access and management
- Convenient access to measure LN2 level
