Erlab Captair Flow HEPA Filtered Enclosures
Item#: CAPTAIRFLOWThe CaptairFlow laminar flow hoods provide an ultra-clean and dust-free work area. Ideal for applications such as non-pathogenic cell cultures, In-vitro cultures, microbiology, homeopathic preparations, electronics, and optics. These workstations feature HEPA H14 filters to provide an ISO Class 5 work environment. The HEPA H14 filters guarantee 99.995% filtration efficiency for particles larger than 0.1μm. Product features include bright internal lighting, slanted sash, large opening for easy access, and side panel utility ports, and low energy consumption.

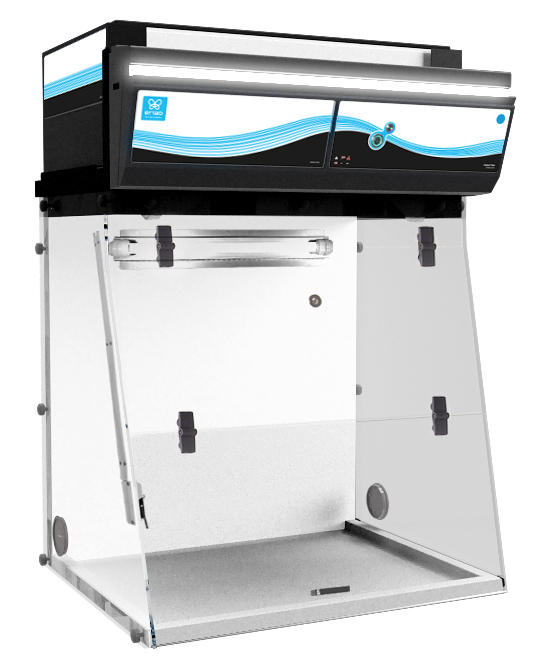

Enclosure Model: 321
- External Dimensions (Inches): 32.48” W x 24.80” D x 45.67”-48.82” H (min-max)
- Air Flow Version 1P (filter Hepa H14): 256m3/h
- Air Flow version 1C1P (filter Hepa H14 + carbon filter): 164m3/h
- Voltage / Frequency: 90-264V/50-60Hz
- Energetic consumption: 70W
- Side and front panels: Acrylic 8mm

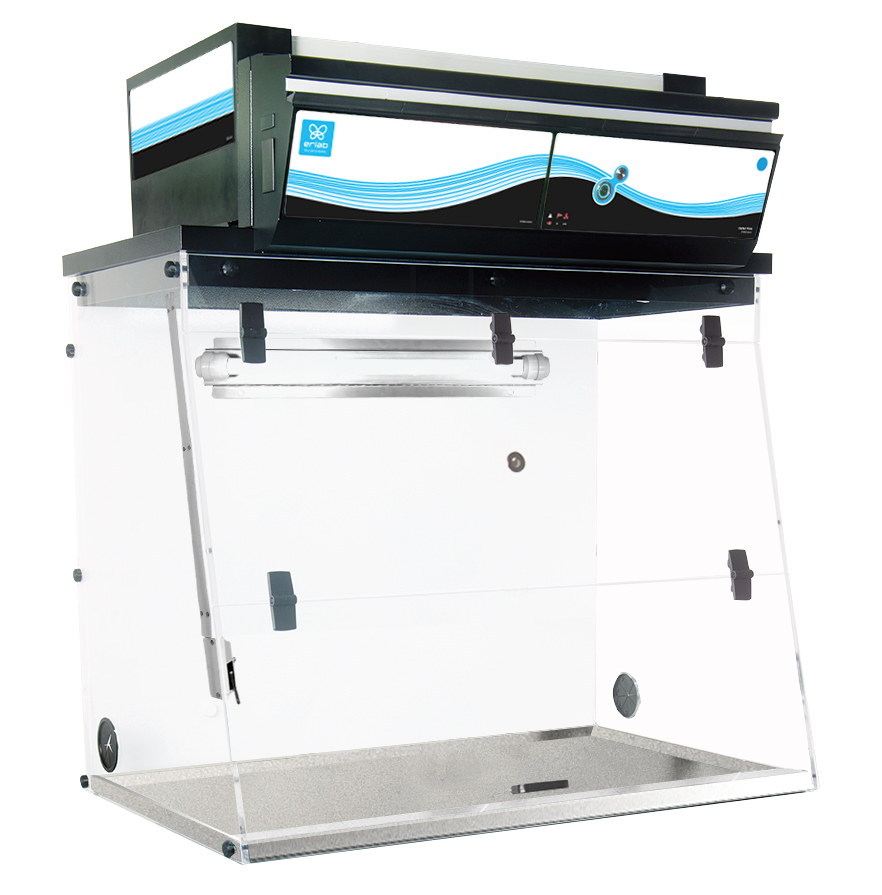

Enclosure Model: 391
- External Dimensions (Inches): 37.37” W x 24.80” D x 45.67”-48.82” H (min-max)
- Air Flow Version 1P (filter Hepa H14): 256m3/h
- Air Flow version 1C1P (filter Hepa H14 + carbon filter): 164m3/h
- Voltage / Frequency: 90-264V/50-60Hz
- Energetic consumption: 70W
- Side and front panels: Acrylic 8mm

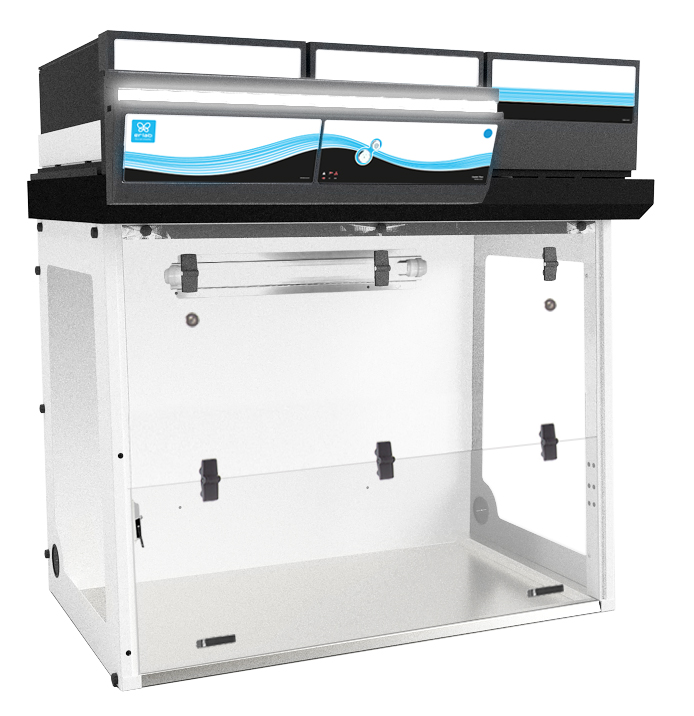

Enclosure Model: 483
- External Dimensions (Inches): 50.20” W x 31.50” D x 51.77”-54.92” H (min-max)
- Air Flow Version 1P (filter Hepa H14): 768m3/h
- Air Flow version 1C1P (filter Hepa H14 + carbon filter): 492m3/h
- Voltage / Frequency: 90-264V/50-60Hz
- Energetic consumption: 191W
- Side and front panels: Acrylic 8mm

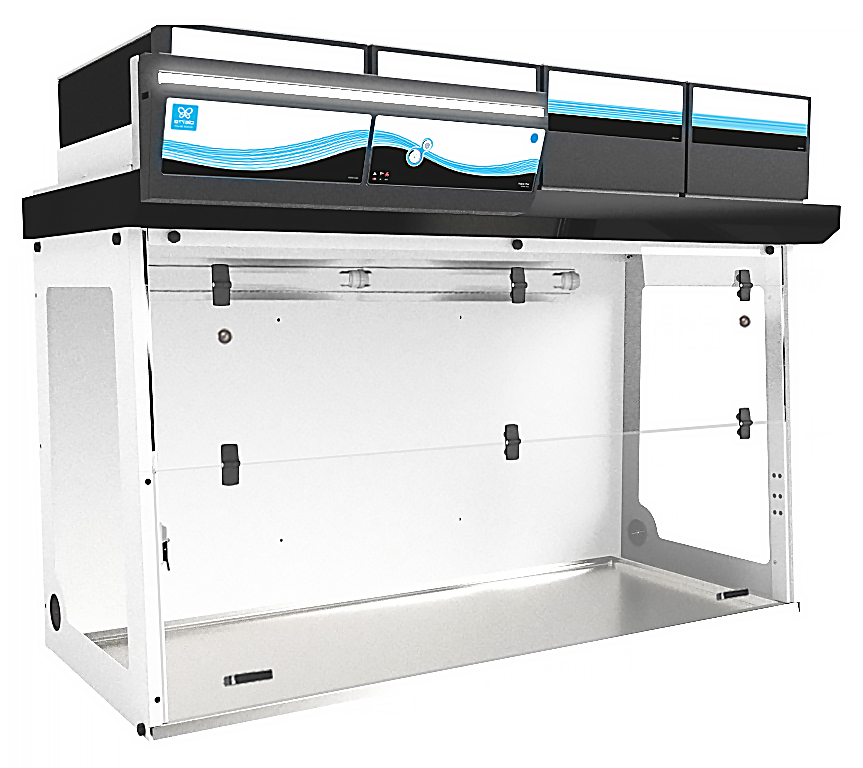

Enclosure Model: 714
- External Dimensions (Inches): 70.87” W x 31.50” D x 51.77”-54.92” H (min-max)
- Air Flow Version 1P (filter Hepa H14): 1024 m3/h
- Air Flow version 1C1P (filter Hepa H14 + carbon filter): 656m3/h
- Voltage / Frequency: 90-264V/50-60Hz
- Energetic consumption: 261W
- Side and front panels: Acrylic 8mm
Filtration
- Filter HEPA H14: This filtration technology traps particles larger than 0.1 μm with 99.995% efficiency, according to the MPPS method set forth in the EN 1822-1 standard.
- Molecular filter (option): Adding a carbon filter to your vented cabinet allows you to protect its volume from gazes pollutants present in your laboratory environment.
- AS : For organic vapors - BE+ : For organic vapors and acid vapors F : For formaldehyde vapors - K : For ammonia vapors
Equipment:
- Digital control panel: Permanent ventilation control device
- Energy port: To run electrical and fluid lines into the enclosure
- Internal lighting: Compact tubular fluorescent lighting 18W - 500 Lux - IP67
4 models
• 4 sizes available
• Stainless steel worktop with a built in spill tray
• Rolling or fixed carts available
• Standalone enclosures that do not require HVAC connections
• Immediately operational, place where you need it in your lab
Air quality into the enclosure
• HEPA H 14 filter : 99.995% filtration efficiency for particles larger than 0.1 microns (according to the EN1822-1 standard, MPPS method.)
• Vertical laminar air flow entering the enclosure protects your work from contamination.
• Air quality in the enclosure is ISO 5
Additional chemical protection
• Advanced carbon filter will protect handlings from VOCs present into the laboratory air
Very low energy consumption
• The largest hood is only 261W
Applications :
• Non-pathogenic cell cultures
• In-vitro cultures
• Microbiology (Non-pathogenic)
• Electronics
• Homeopathic preparations in pharmacies
• Optics...
